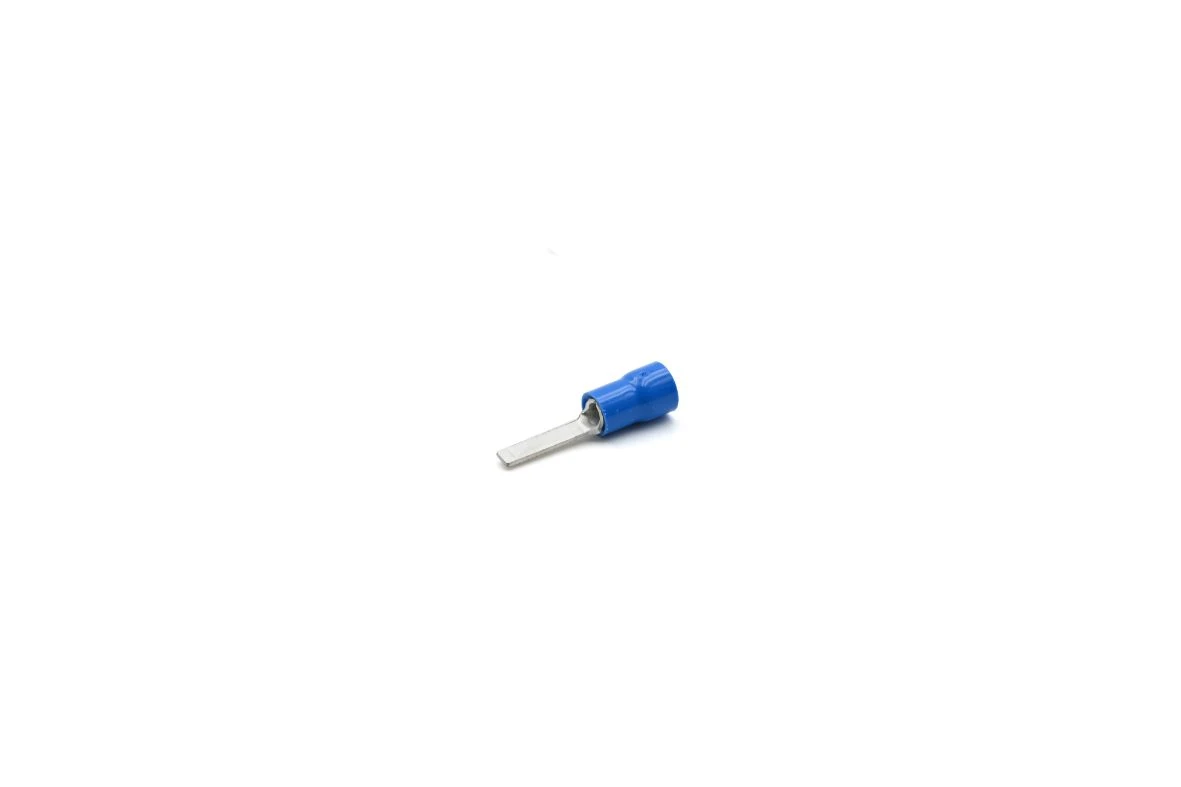

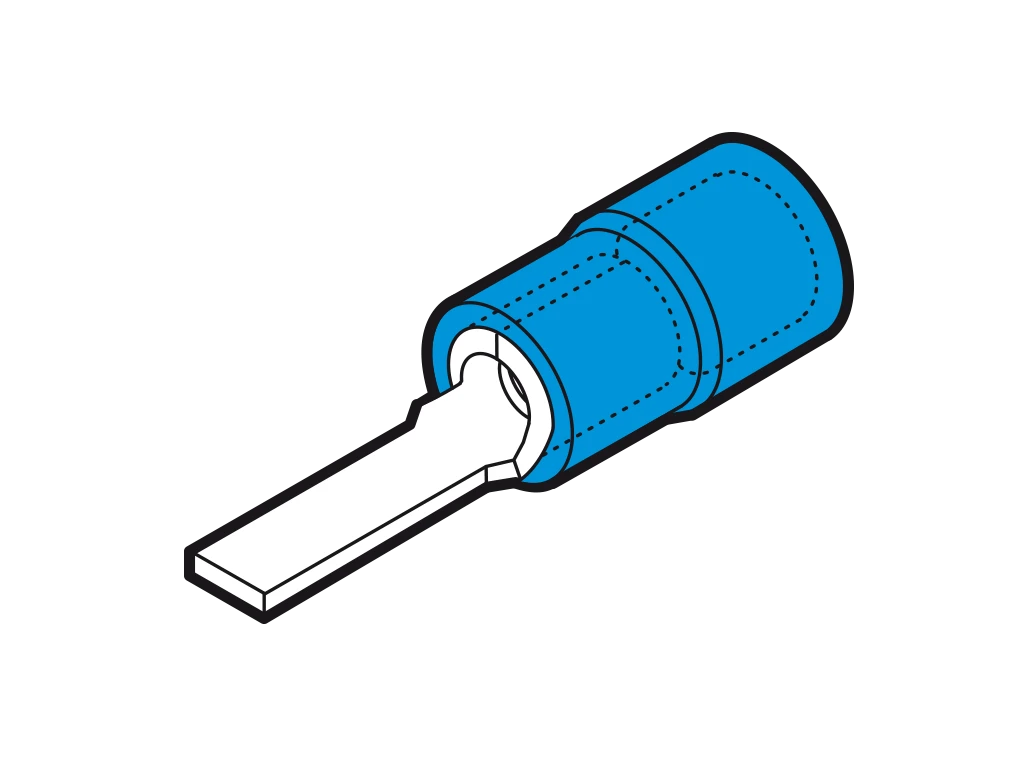

Blade Terminal Blue
Blade Terminal Blue
Blade Terminal Blue - Image 2
Blade Terminal Blue - Image 3
Blade Terminal Blue - Image 4

Blade Terminal Blue

£0.10 Incl. VAT

1.5mm²-2.5mm² PVC insulated blade terminal 13.3mm x 2.5mm blade size blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Length Min Max: 23.4 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 486A EEC 73/23 UNI EN 1652

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-PP12/25 Categories: , , Brand: Part Number: 2500221911

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Flange shape Pin shape Colour insulation Blue Material Copper Sleeve form Short Nominal cross section 1.5 – 2.5 mm² For pull protected connections No Reel packaging No AWG-range 16 – 14 Max. current (Imax) – A Surface protection Tinned Bolt dimension (metric) – Insulation Polyvinyl chloride (PVC) According to DIN No Suitable for solid cores No Suitable for fine strand conductors No Suitable for insulated varnish No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No
