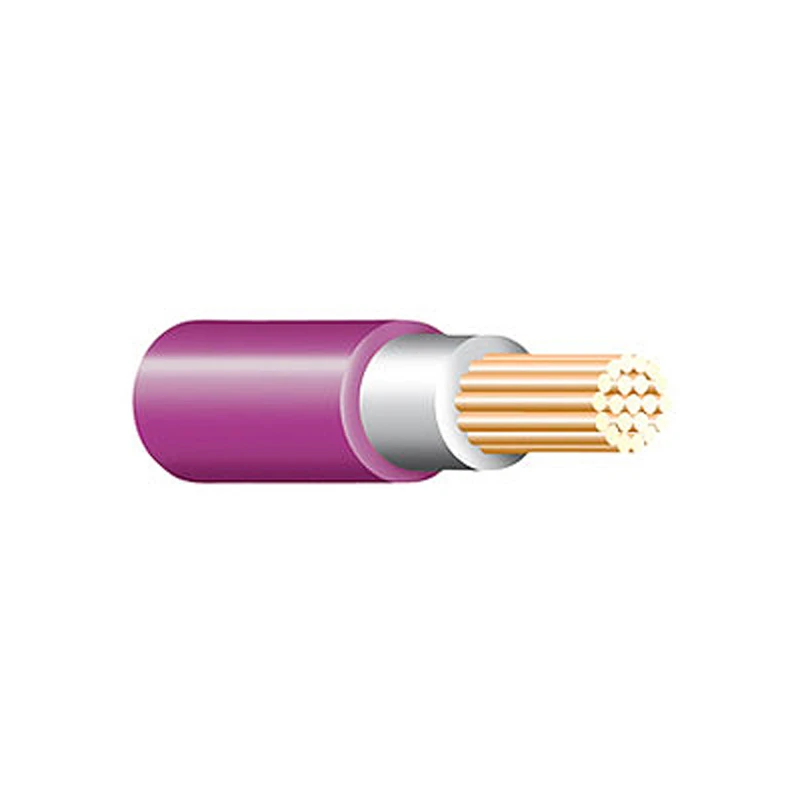

BS6231 1.0mm² Violet Tri-Rated Cable 1-Core Panel Wire

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. BS62311.0 is a Control Panel Cable made of annealed copper. Temperature range is recognised by UL and CSA as heat-resisting with a maximum conductor operating temperature of 105°C. The standard BS 6231 specifies a maximum conductor operating temperature of 90°C for continuous use with a limit of 15000 hours at 105°C. PW01 has good low temperature flexibility, meeting cold bend tests down to -30°C. The maximum working voltage is UL, CSA 600Vrms BS 6231 (uo/u) 600/1000V rms. · · · Cable Size: 1.0mm² · · Colour: Violet · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Panel Wire
