Cable

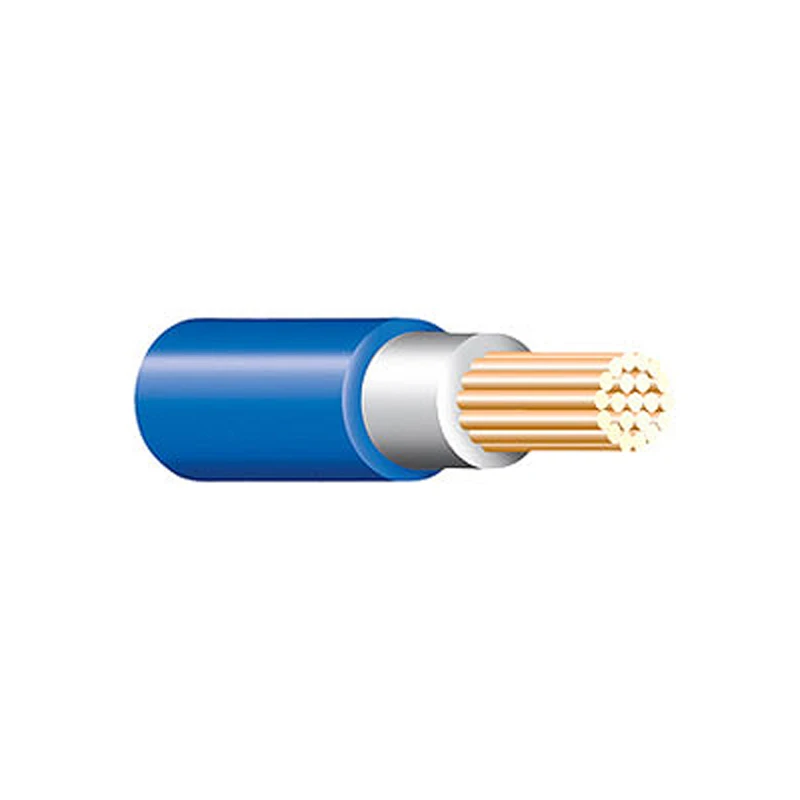

Commodity Cables BS6231 4.0mm² Blue Tri-Rated Cable 1-Core Panel Wire

Brand: Commodity CablesProduct code: BS6231-4.0-BLU100 CABL-RXGo Magpie Ref: 5060062354841

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. BS62314.0 is a Control Panel Cable made of annealed copper. Temperature range is recognised by UL and CSA as heat-resisting with a maximum conductor operating temperature of 105°C. The standard BS 6231 specifies a maximum conductor operating temperature of 90°C for continuous use with a limit of 15000 hours at 105°C. PW01 has good low temperature flexibility, meeting cold bend tests down to -30°C. The maximum working voltage is UL, CSA 600Vrms BS 6231 (uo/u) 600/1000V rms.. Resistance: 4.71 /km@20C (Max Conductor) · · · Cable Size: 4.0mm² · · Colour: Blue · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Cross Sectional Area: 4 sq mm (Nominal) · · Diameter: 4.2mm · · Panel Wire

£135.96inc VAT£113.30 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Blue Sheath colour Blue Conductor material Copper Conductor category Class 5 = flexible Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) AWG size 12 Number of cores 1 Core identification Colour Nominal cross sectional area of conductor 4 mm² Conductor Diameter 4 mm Twisted cores No · Technical Data Sheet – Click to Download
