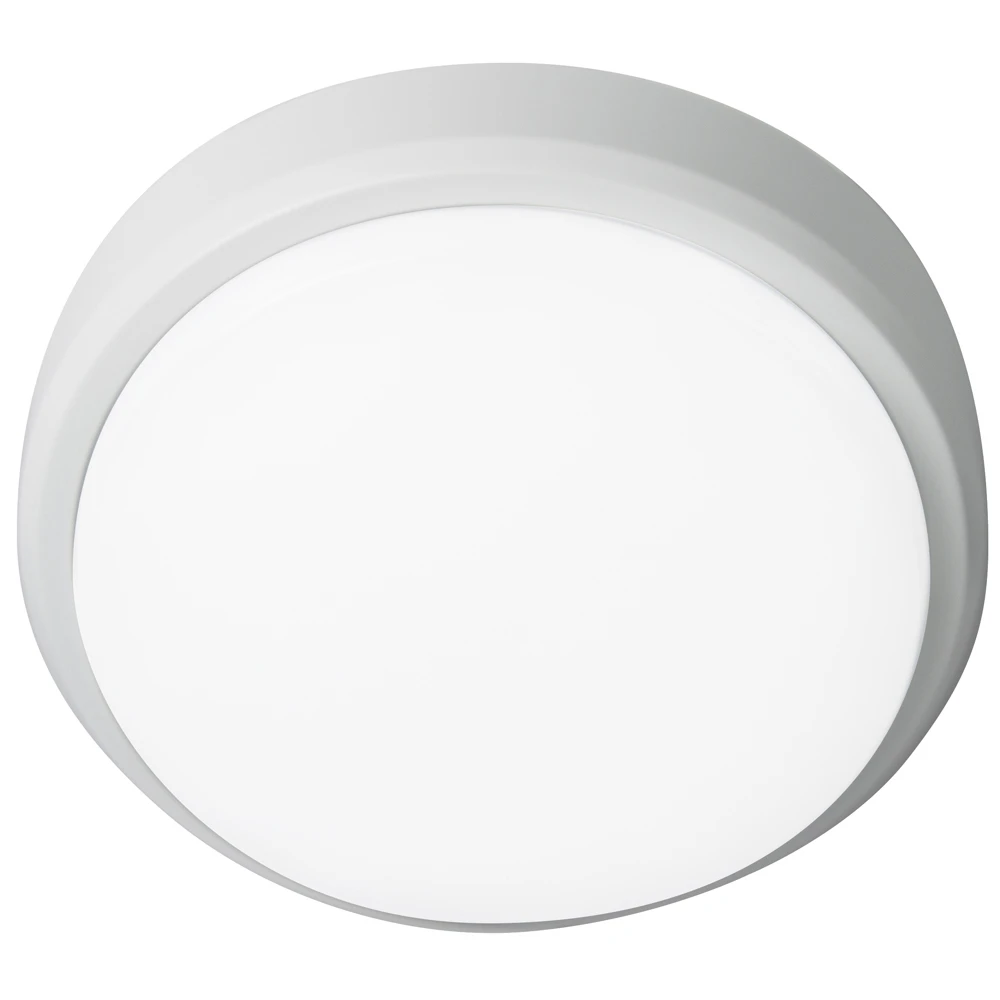

Bulkhead Ohio Circular 4000K 12W White+Black Trims IP54

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Height/depth 55 mm Conductor cross section – mm² Recess diameter – mm Outer diameter 211 mm Number of poles – Rated luminous flux acc. IEC 62722-2-1 – lm Recess width – mm Number of lamps – Power factor 0.5 Rated life time L70/B50 at 25 °C 30000 h Luminaire efficacy 79 lm/W Recess height/depth – mm Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Lamp power – – – W Maximum system power 12.1 W Unified Glare Rating (UGR) 16.6 Total harmonic distortion 142.3 Recess length – mm Nominal current 125 – 125 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C With movement sensor No Suitable for suspended mounting No Light source included Yes With light sensor No Suitable for ceiling mounting No Luminaire may be covered with thermally insulating material No Control gear included Yes Bluetooth operated No With air slots No Suitable for light line configuration No Suitable for wall mounting Yes Suitable for emergency lighting No Fit for workplace acc. EN 12464-1 No Suitable for recessed mounting No No dimming function Yes Dimming DALI No Dimming with push-button No Dimming 1-10 V No Dimming mains voltage modulation No Suitable for surface mounting No Dimming potentiometer (integrated) No Dimming depending on control gear No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Dimming Zigbee No Dimming programmable No Dimming touch and dim No Dimming DMX No Dimming sine wave reduction No Dimming 0-10 V No Dimming DSI No Dimming RF No Dimming manufacturer’s proprietary system No Dimming leading edge No Dimming trailing edge No Dimming LineSwitch No · Technical Data Sheet – Click to Download
