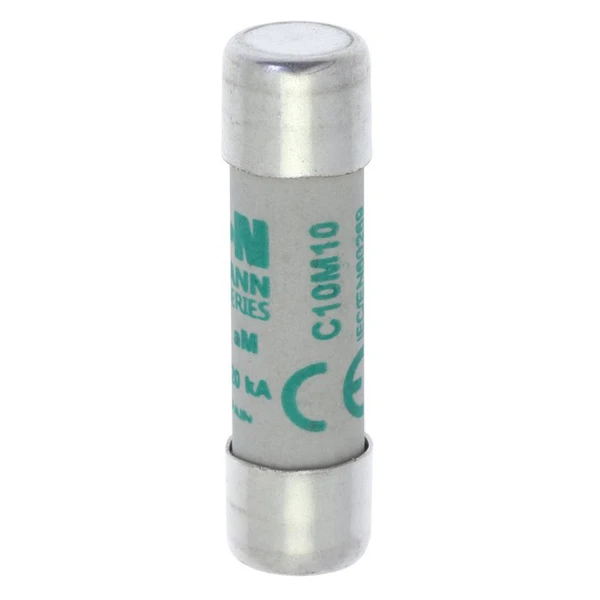

Bussmann Cylindrical Fuse Link aM 10A 500V 120kA
Bussmann Cylindrical Fuse Link aM 10A 500V 120kA
Bussmann Cylindrical Fuse Link aM 10A 500V 120kA - Image 2

Bussmann Cylindrical Fuse Link aM 10A 500V 120kA

£1.01 Incl. VAT

Eaton Bussmann Cylindrical Fuse Link with cylindrical class aM, suitable for industrial applications and general purpose use. It is certified IEC 60269-2 standards. It is compatible with Bussmann’s modular fuse holders. Features compact design, tool free installation and low temperature rise. · · · aM class, 10 x 38 size · · Compact design · · Tool free installation · · Low temperature rise · · Certified IEC 60269-2 standards · · IP65 degree of protection · · Unsuitable for ModuPlug®

30 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C10M10 Categories: , , Brand: Part Number: 2500104596

Description

Technical Specifications  Technical Specifications Cylindrical fuse Utilization category aM (switchgear protection) Model Ceramic fuse Size 10×38 mm Rated voltage 500 V Voltage type AC Rated current 10 A Power loss at rated current 0.55 W Rated operating frequency 45 – 62 Hz Breaking capacity 120 kA · Technical Data Sheet – Click to Download
