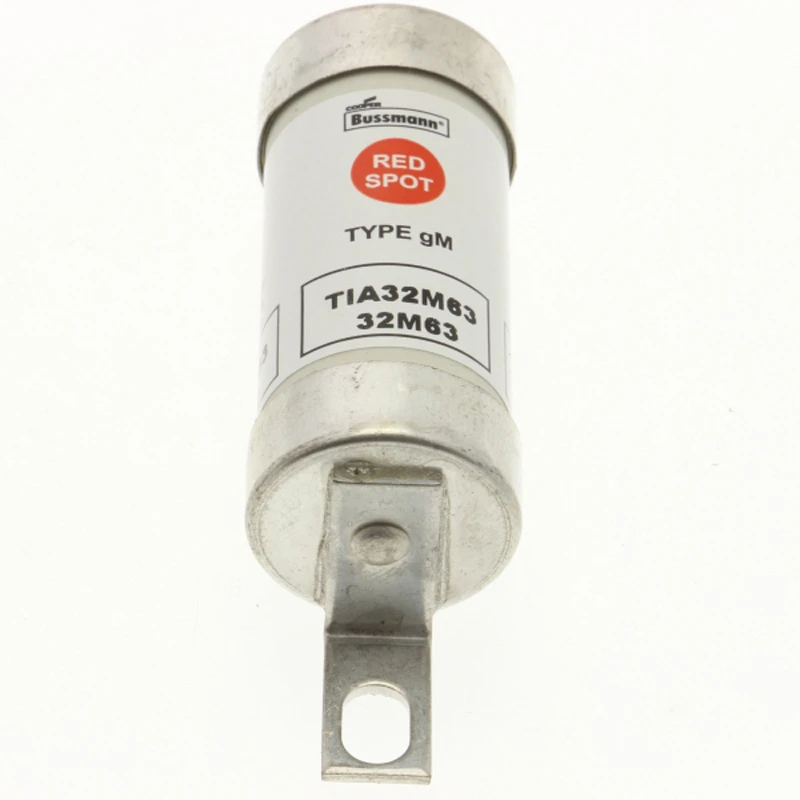

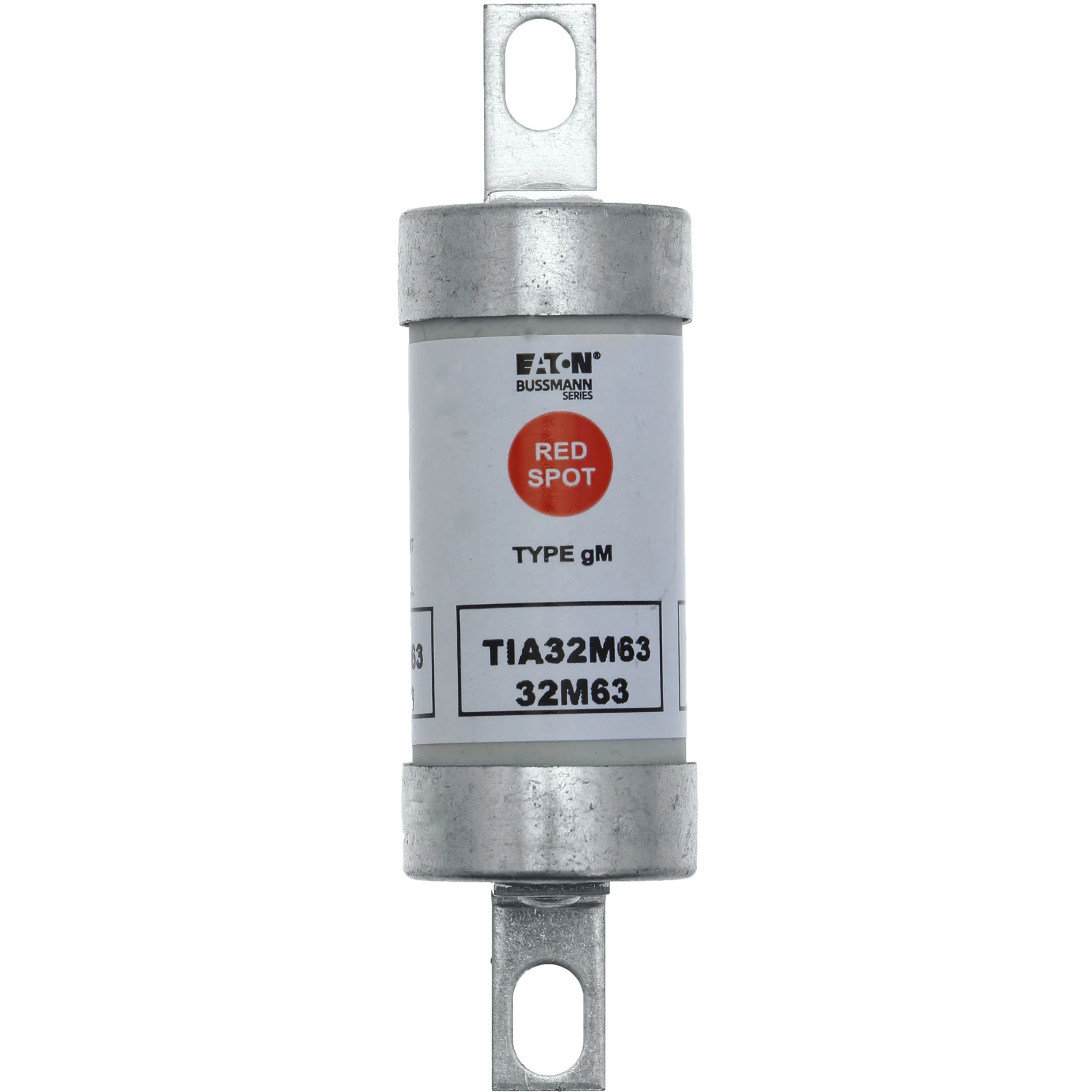

Bussmann Red Spot 32M63A Offset Bolted Tag Fuse Link
Bussmann Red Spot 32M63A Offset Bolted Tag Fuse Link
Bussmann Red Spot 32M63A Offset Bolted Tag Fuse Link - Image 2
Bussmann Red Spot 32M63A Offset Bolted Tag Fuse Link - Image 3
Bussmann Red Spot 32M63A Offset Bolted Tag Fuse Link - Image 4

Bussmann Red Spot 32M63A Offset Bolted Tag Fuse Link

£10.57 Incl. VAT

Red Spot offset bolted tags fuse links are specifically designed for the protection of general motor applications. · · · BS reference: A2 · · gM characteristics for motor protection applications · · Good peak and let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values well within the limits of IEC 60269 · · Compatible with Camaster Compact 32A CM32FC and Red Spot fuse holder 32A RS32 · · Pre-arching: 6,500 · · Total at rated voltage: 25,000 · · 73mm fixing centre · · 660-690V AC/460V DC

27 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TIA32M63 Categories: , , Brand: Part Number: 2500522405

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Fuse construction type according to IEC 60269 A2 Utilization category gM (motor protection) Current type AC/DC Mounting holes M5 Rated current 63 A Rated voltage DC 460 V Centre-to-centre distance of connections 73 mm Rated voltage AC 660 V Breaking capacity 80 kA · Technical Data Sheet – Click to Download
