Fusegear

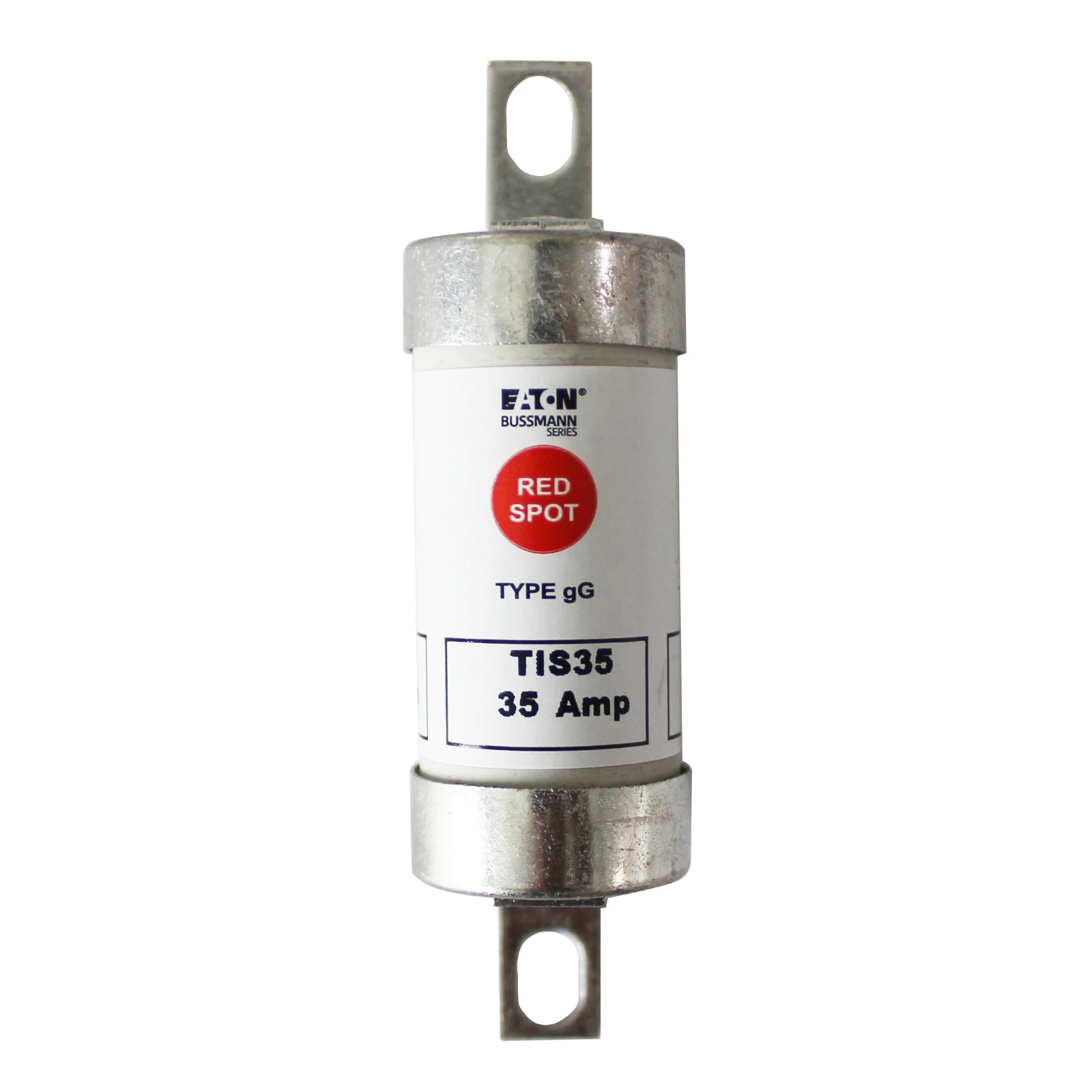

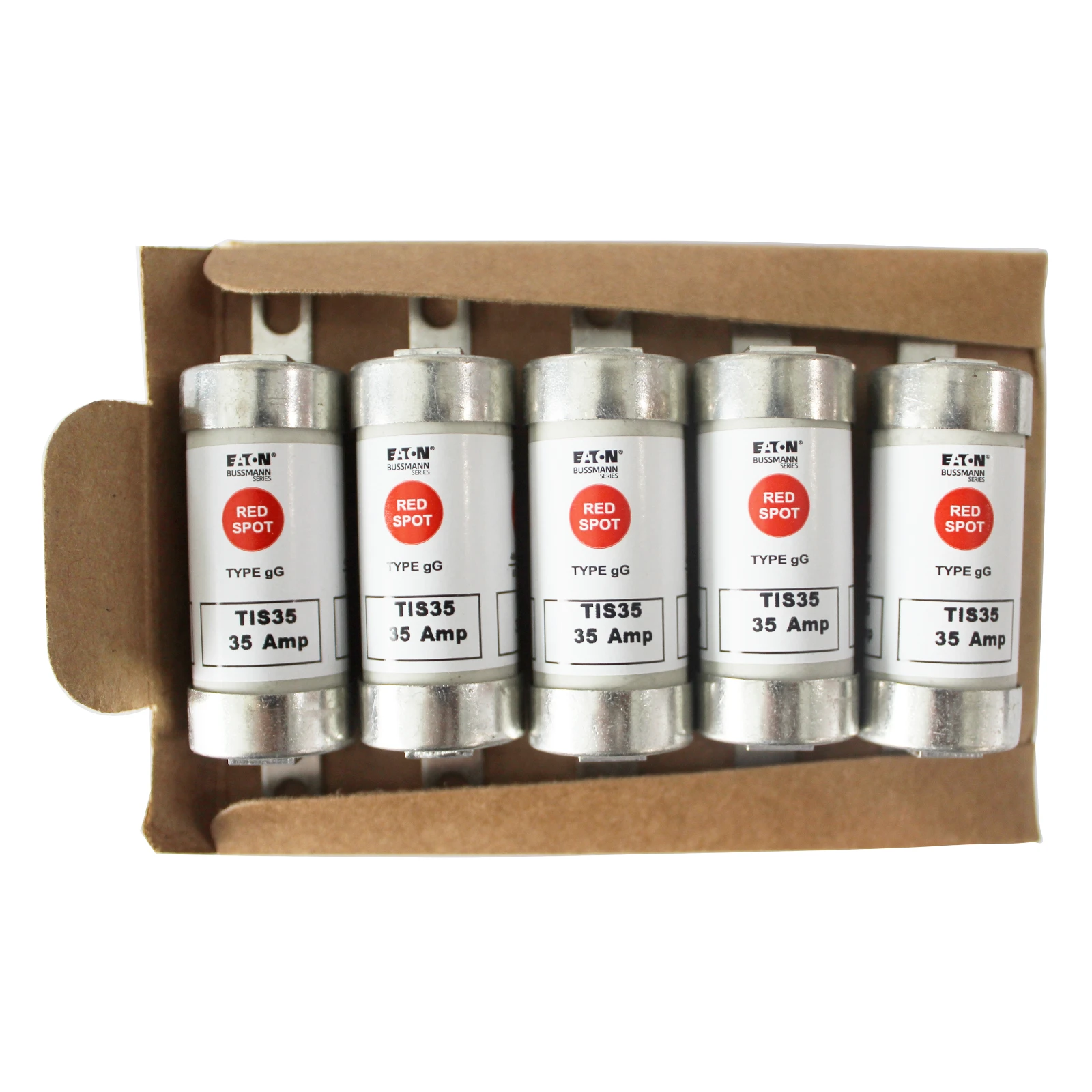

Eaton Bussmann Red Spot 35A Offset Bolted Tag Fuse Link

SKU: TIS35Go Magpie ID: 5060062354510

Red Spot industrial offset bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: A3 · · gG characteristics for cable protection · · Good peak and let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values well within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 63A RS63 · · Pre-arching: 1,380 · · Total at rated voltage: 6,500 · · 73mm fixing centre · · 660-690V AC/460V DC

£14.81inc VAT£12.34 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Utilization category gG (cable protection/equipment protection) Fuse system according to IEC 60269 Fuse system E Current type AC/DC Fuse construction type according to IEC 60269 A3 Mounting holes M5 Breaking capacity 80 kA Centre-to-centre distance of connections 73 mm Rated current 35 A Rated voltage AC 660 V Rated voltage DC 460 V · Technical Data Sheet – Click to Download
