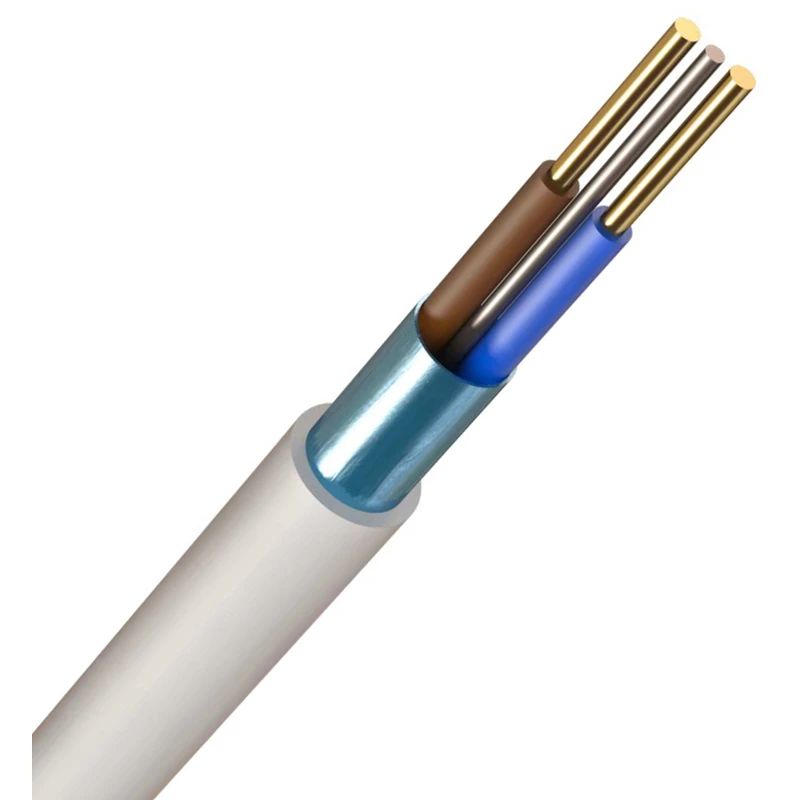

Prysmian FP200G2C 1.5mm² White Fire Performance Soft Skin Standard Cable 2-Core

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor material Copper Conductor category Class 1 = solid Sheath colour White Core insulation material Polyolefin Conductor surface Bare Sheath material Polyolefin Core identification Colour Nominal voltage U0 300 V Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 500 V Max. conductor temperature 70 °C Outer diameter approx. 7.9 mm Number of cores 2 Permitted cable outer temperature during assembling/handling 0 – 60 °C Screen Yes Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
