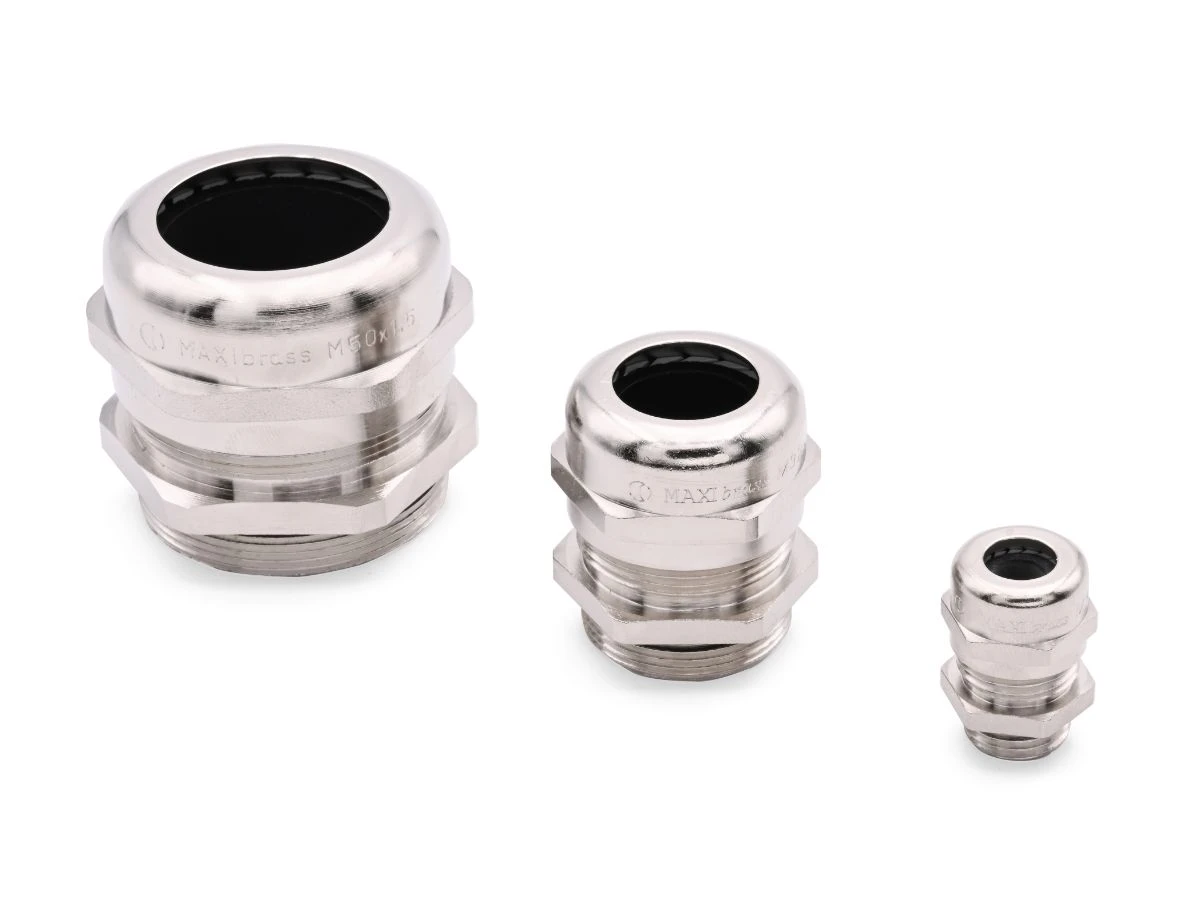

Cembre M16X1.5 Nickel Plated Brass Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Surface protection Nickel-plated Degree of protection (IP rating) IP68 Model Straight Thread type Metric Type of sealing Sealing ring Material Metal Nominal thread size metric/PG 16 Material qualifier Brass Pitch thread 1.5 mm Hexagon angular dimension 20 mm Spanner width 20 mm Thread length 7 mm RAL number – Suitable for cable outer diameter 4.5 – 10 mm Working temperature -40 – 100 °C Flat cable sealing No For armoured cable No Snapping in opening No Glass fibre reinforced No Separable (split) screw gland No Explosion-tested version No Bend radius protection/trumpet flare No EMC-version No Multi cable sealing No Locknut included No Screened No Shock resistant No With strain relief Yes Halogen free No · Technical Data Sheet – Click to Download
