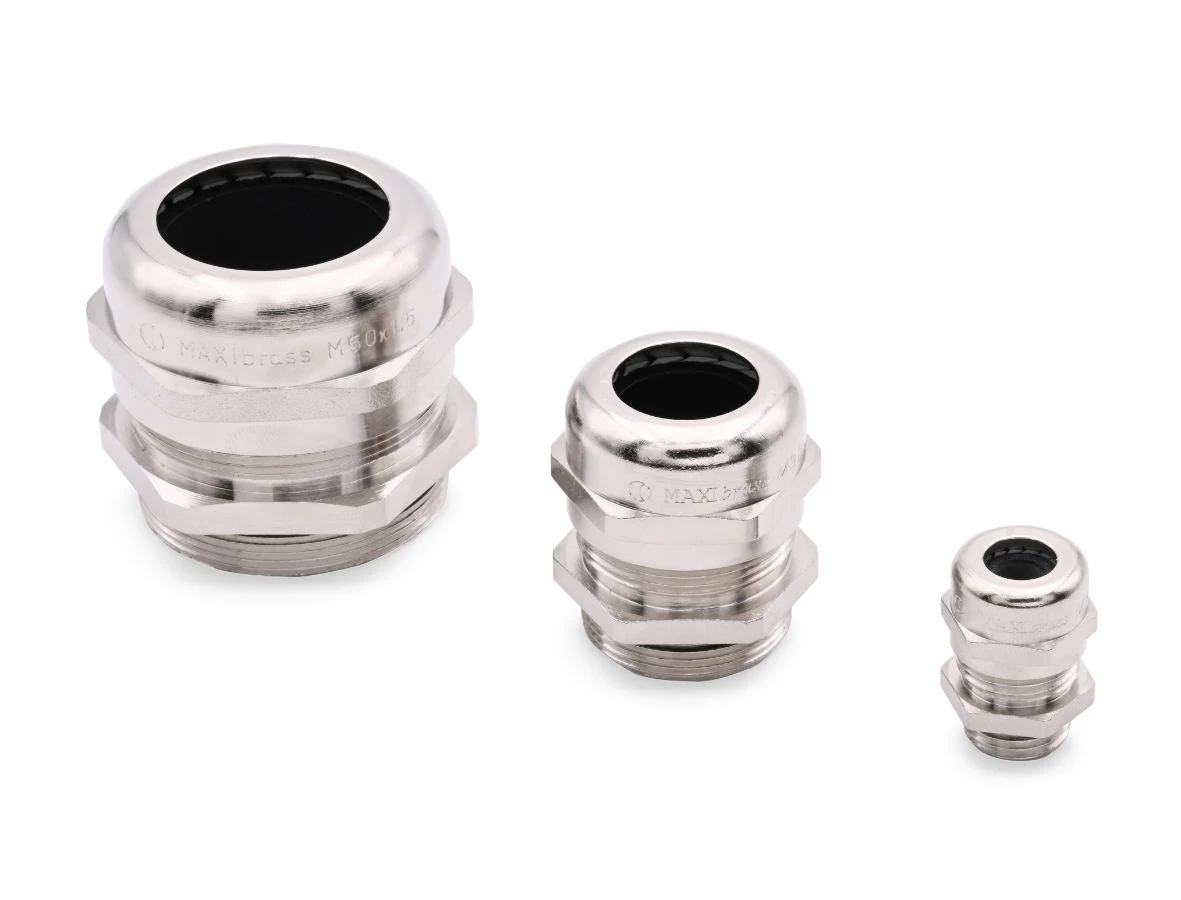

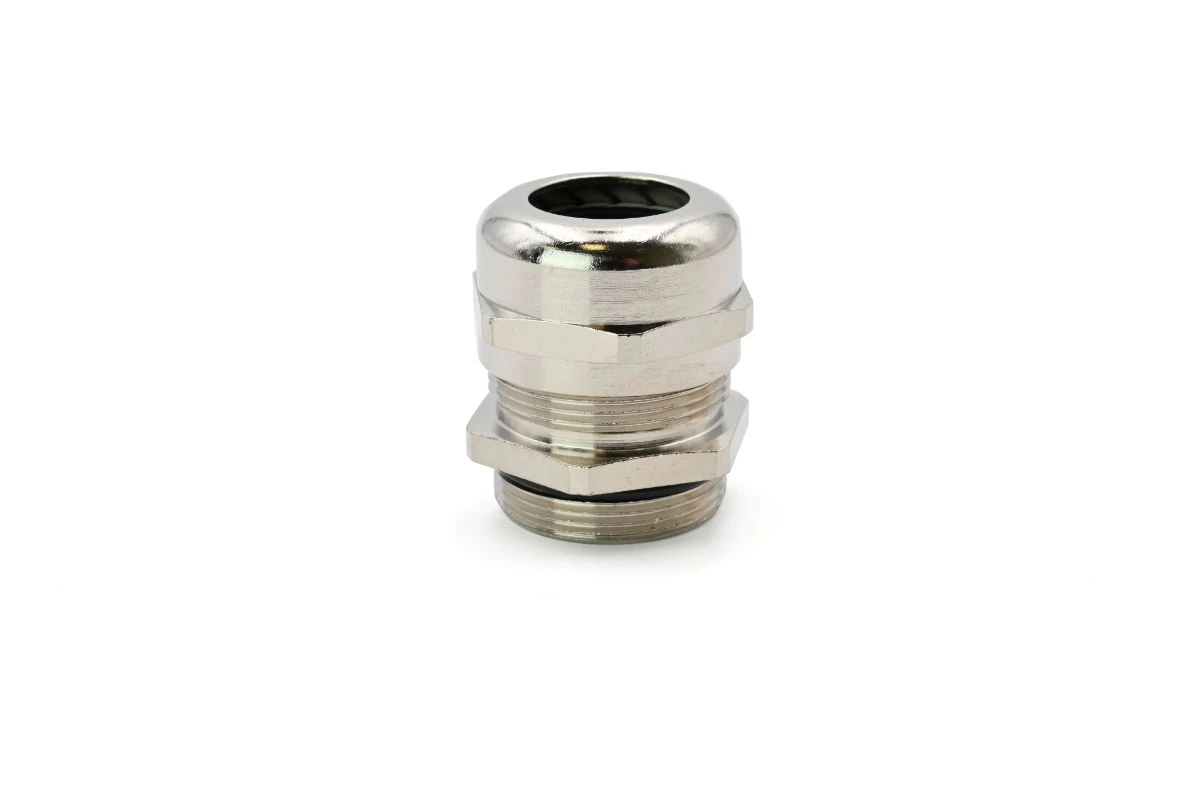

Cembre M25X1.5 Nickel Plated Brass Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Thread type Metric Surface protection Nickel-plated Type of sealing Sealing ring Model Straight Material qualifier Brass Material Metal Spanner width 29 mm Nominal thread size metric/PG 25 Thread length 8 mm Pitch thread 1.5 mm Hexagon angular dimension 32 mm RAL number – Suitable for cable outer diameter 10 – 17 mm Working temperature -40 – 100 °C Halogen free No EMC-version No For armoured cable No Snapping in opening No Bend radius protection/trumpet flare No Multi cable sealing No Flat cable sealing No Separable (split) screw gland No Locknut included No Shock resistant No With strain relief Yes Explosion-tested version No Glass fibre reinforced No Screened No · Technical Data Sheet – Click to Download
