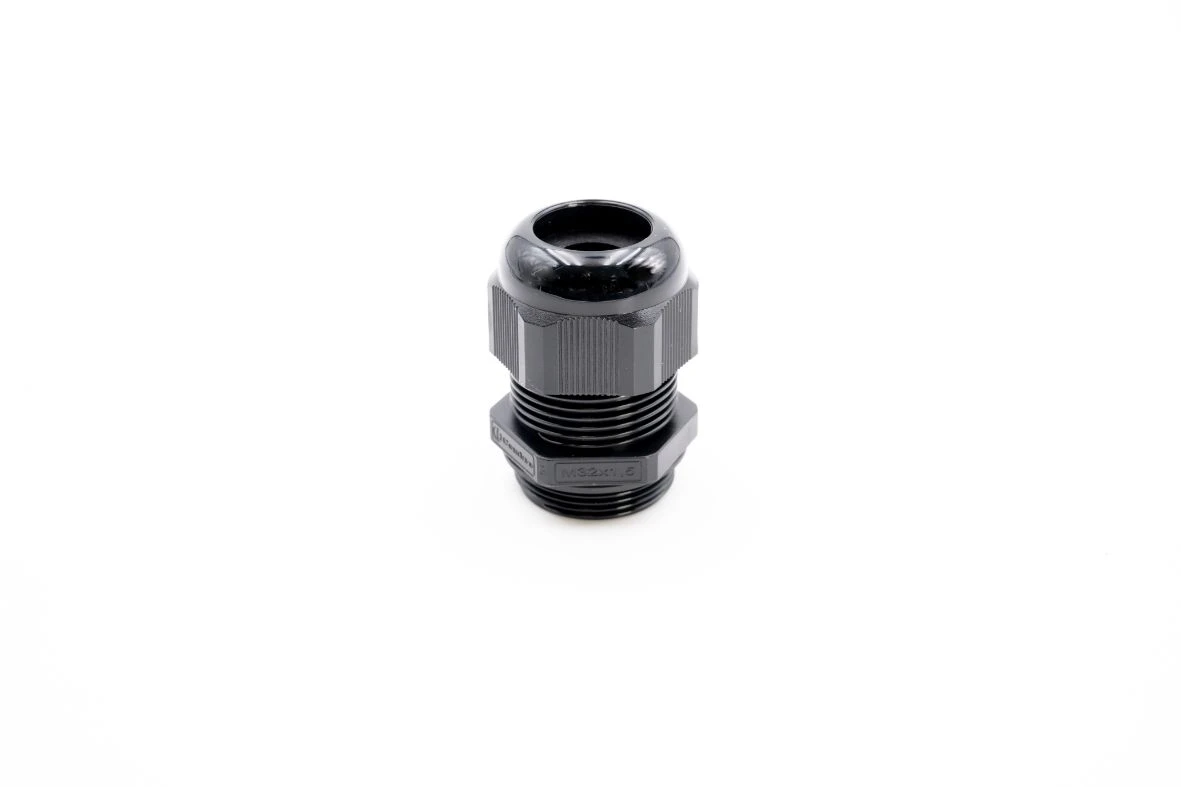

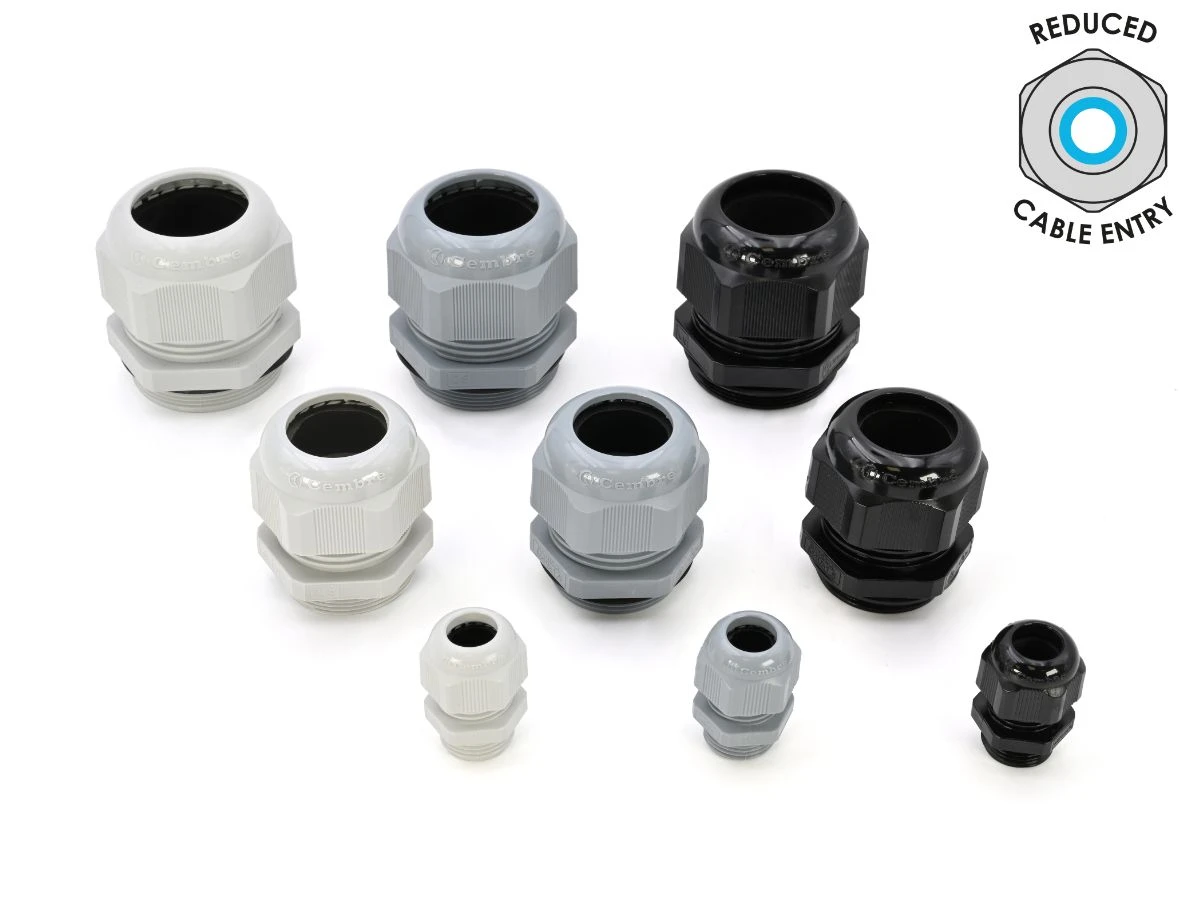

Cembre M32X1.5 Polyamide PA6.6 Reduced Cable Entry Cable Gland Black

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Material Plastic Degree of protection (IP rating) IP68 Thread type Metric Model Straight Type of sealing Sealing ring Colour Black Material qualifier Polyamide (PA) Surface protection Untreated RAL number 9005 Nominal thread size metric/PG 32 Spanner width 36 mm Hexagon angular dimension 36 mm Pitch thread 1.5 mm Thread length 10 mm Suitable for cable outer diameter 13 – 21 mm Working temperature -40 – 100 °C Shock resistant No With strain relief Yes Bend radius protection/trumpet flare No Locknut included No Glass fibre reinforced No Screened No Explosion-tested version No Multi cable sealing No Separable (split) screw gland No EMC-version No Flat cable sealing No For armoured cable No Snapping in opening No Halogen free No · Technical Data Sheet – Click to Download
