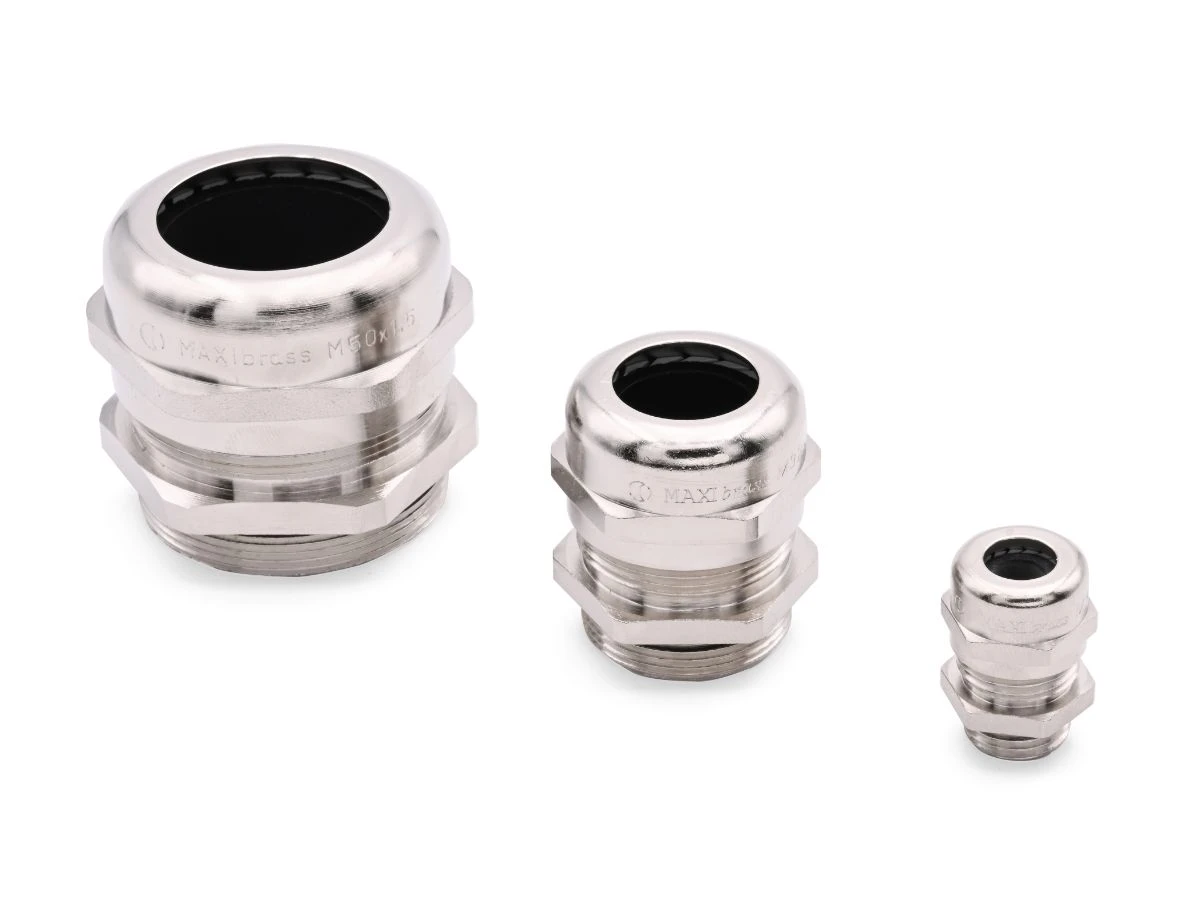

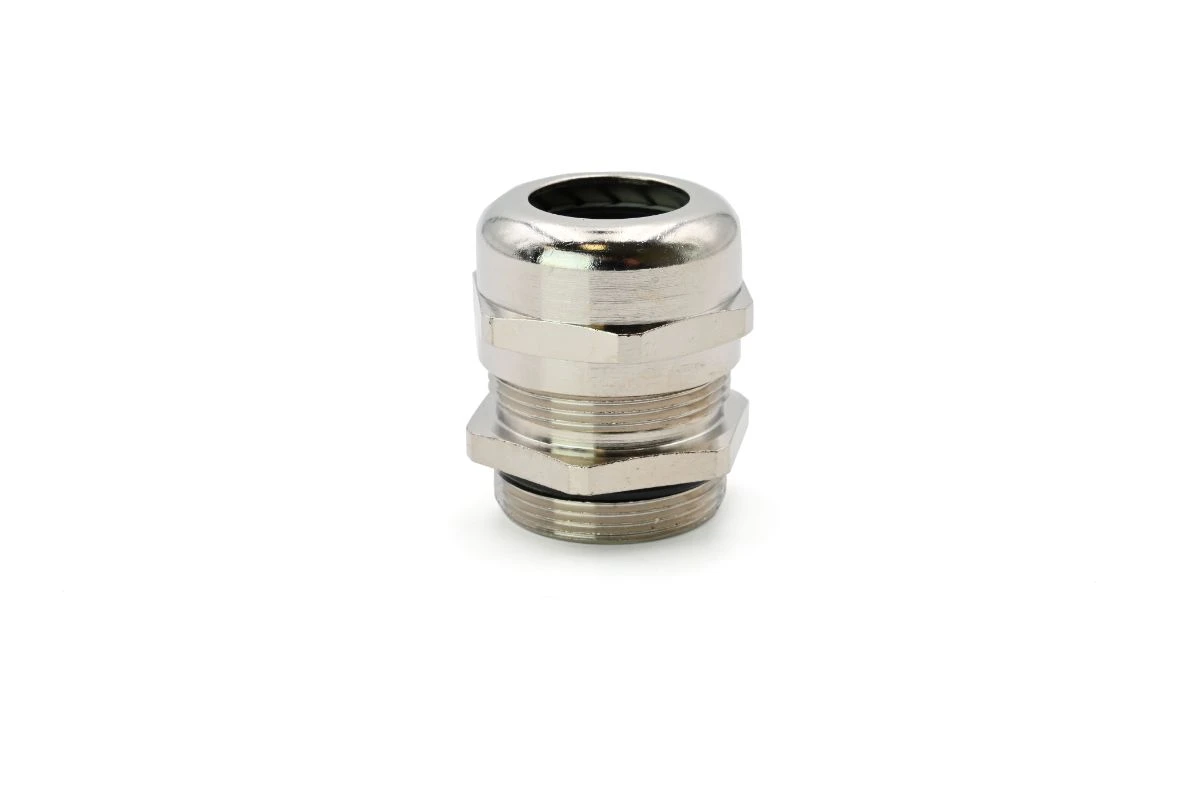

Cembre M32X1.5 Nickel Plated Brass Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Surface protection Nickel-plated Thread type Metric Model Straight Material Metal Type of sealing Sealing ring Material qualifier Brass RAL number – Thread length 9 mm Spanner width 36 mm Nominal thread size metric/PG 32 Pitch thread 1.5 mm Hexagon angular dimension 39 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 11 – 21 mm Shock resistant No Glass fibre reinforced No Screened No Bend radius protection/trumpet flare No With strain relief Yes Multi cable sealing No Locknut included No EMC-version No Explosion-tested version No Flat cable sealing No Separable (split) screw gland No For armoured cable No Snapping in opening No Halogen free No · Technical Data Sheet – Click to Download
