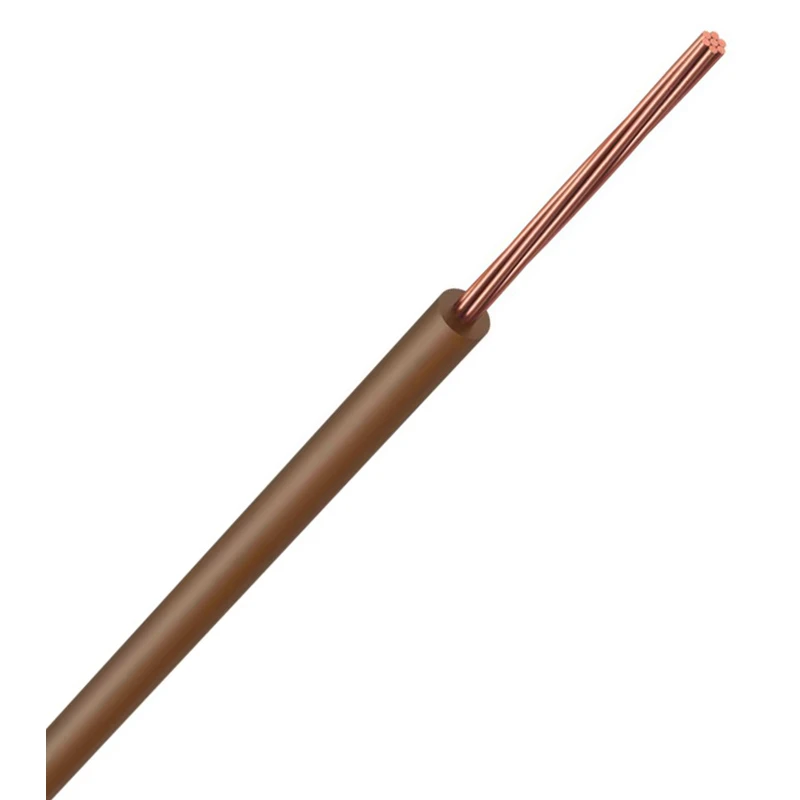

Cable Single Core Conduit Wire LSZH Priced Per Mtr 4mm Brown
£75.90 Incl. VAT
· · BASEC approved · · Operating temperature: -20 to 90°C · · 12.1 Ohm/km @ 20°C · · 0.53mm strand · · Halogen free · · Lead free
199300 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Brown Core colour Blue Conductor category Class 2 = stranded Conductor material Copper Core identification Colour Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Max. conductor temperature 90 °C Nominal voltage U0 450 V Outer diameter approx. 4.2 mm Number of cores 1 Nominal voltage U 750 V Nominal cross sectional area of conductor 4 mm² Permitted cable outer temperature during assembling/handling 0 – 80 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
