Cable

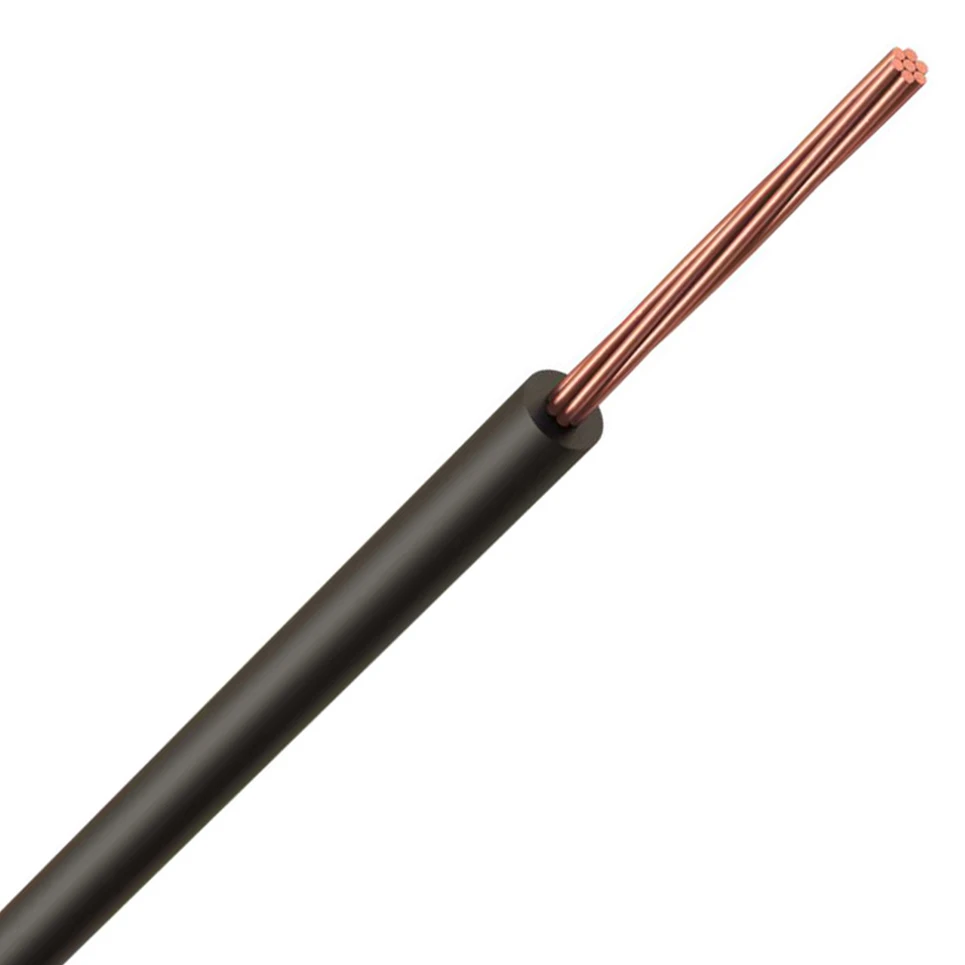

Commodity Cables 6491X 4.0mm² Black PVC Basec Cable Single 1-Core

Brand: Commodity CablesProduct code: 6491X-4.0-BLK100 CABLE-RXGo Magpie Ref: 5060062331509

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X4.0 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sys · · · Cable Size: 4.0mm² · · Colour: Black · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

£102.96inc VAT£85.80 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Conductor material Copper Sheath colour Blue Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Nominal voltage U 750 V Conductor Diameter 4 mm Nominal cross sectional area of conductor 4 mm² Min. permitted bending radius, stationary application/permanent installation 26 mm Max. conductor temperature 70 °C Outer diameter approx. 4.2 mm Nominal voltage U0 450 V Number of cores 1 Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Twisted cores No · Technical Data Sheet – Click to Download
