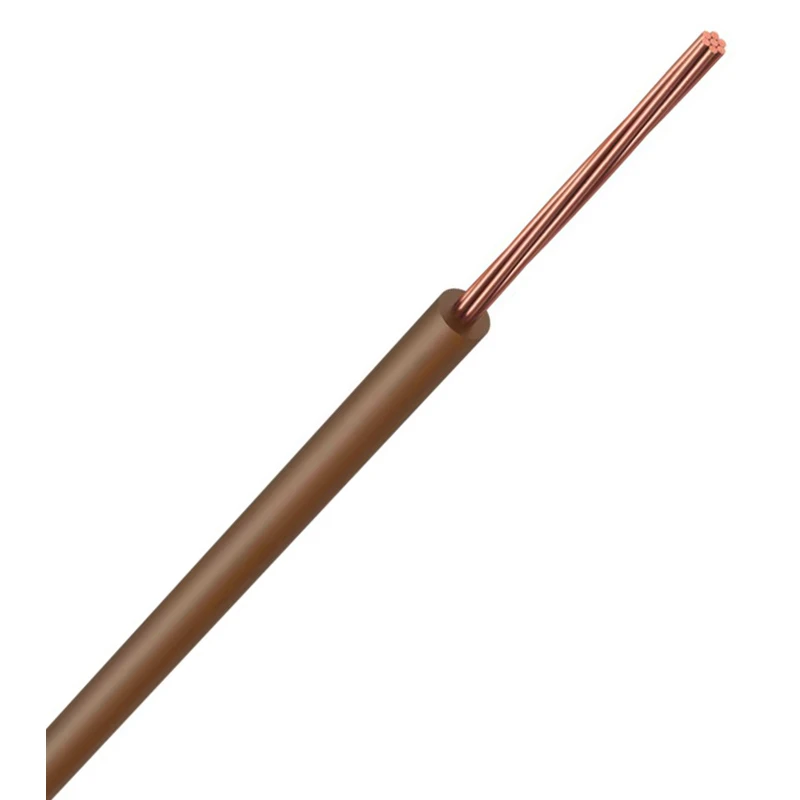

Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Brown
Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Brown
Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Brown - Image 2
Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Brown - Image 3
Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Brown - Image 4

Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Brown

£126.96 Incl. VAT

Minimum order: 100 units.

25500 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-6.0-BRN100 CABLE-RX Categories: , , Brand: Part Number: 2500003332

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Conductor material Copper Sheath colour Blue Core colour Blue Core insulation material Polyvinyl chloride (PVC) Core identification Colour Sheath material Polyvinyl chloride (PVC) Conductor Diameter 6 mm Number of cores 1 Outer diameter approx. 4.7 mm Max. conductor temperature 70 °C Min. permitted bending radius, stationary application/permanent installation 29 mm Nominal voltage U 750 V Nominal cross sectional area of conductor 6 mm² Nominal voltage U0 450 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Twisted cores No · Technical Data Sheet – Click to Download
