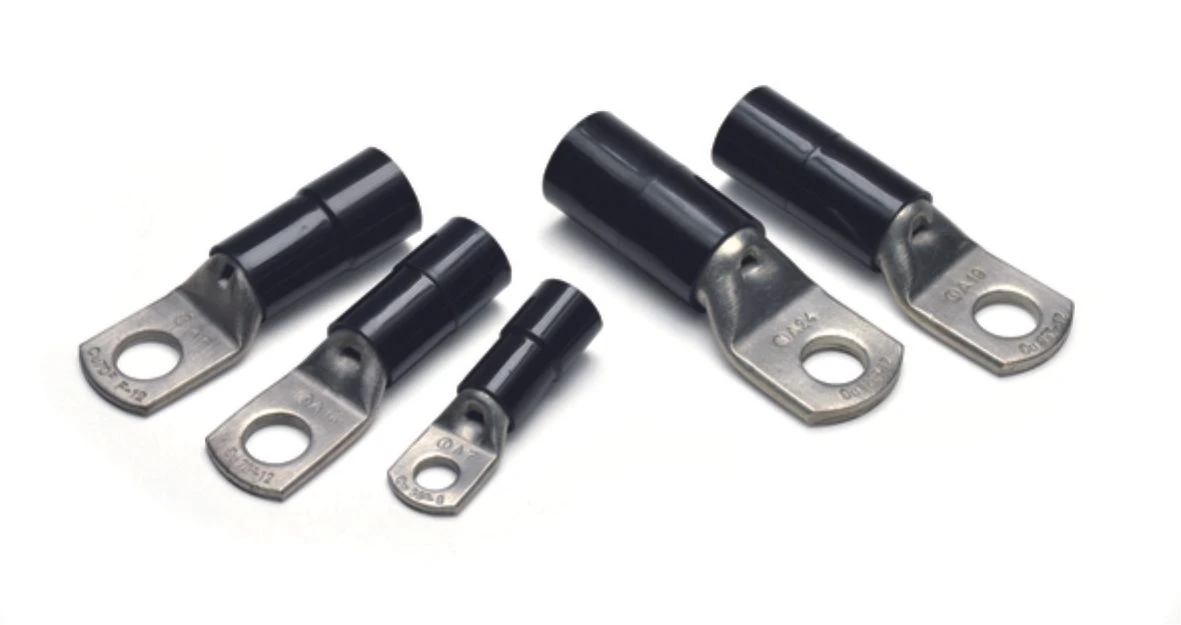

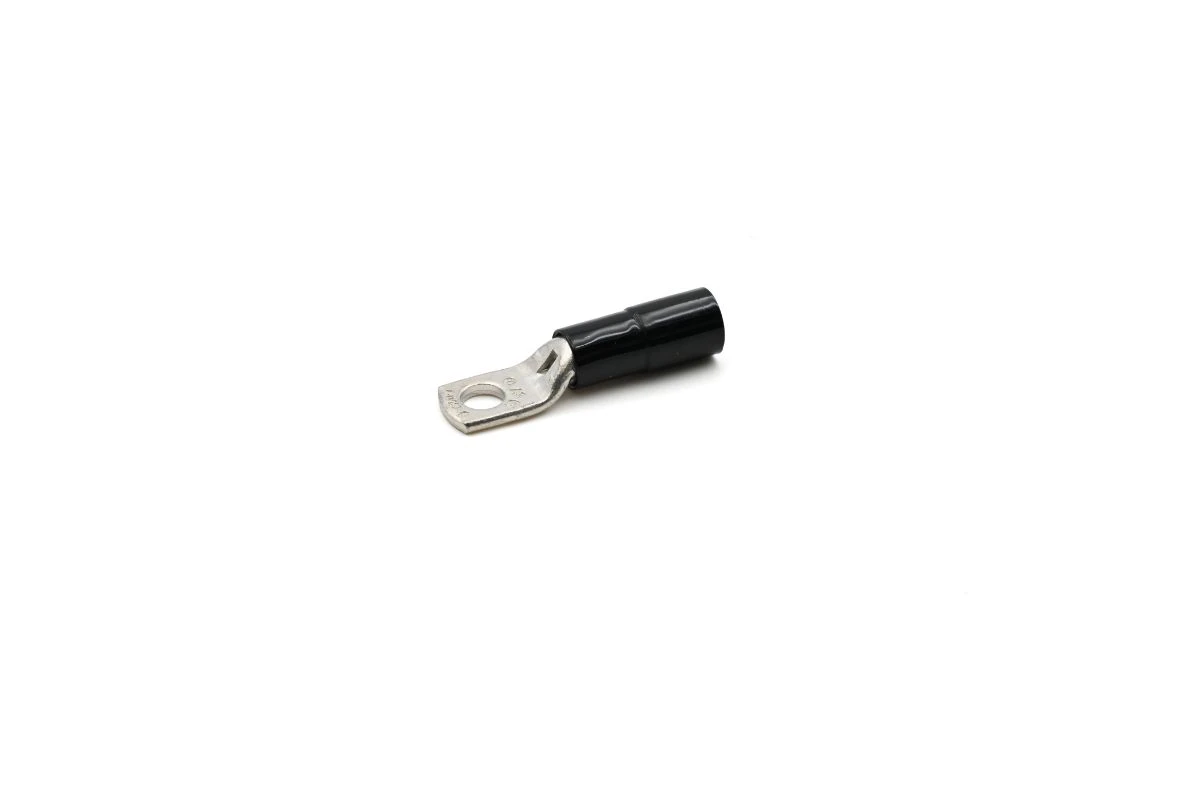

Cembre 16mm² Polyamide Pa6.6 Insulated Copper Tube Crimping Lug M8 Stud Black

SKU: ANE3-M8Go Magpie ID: 5060062361950

16mm² Polyamide PA6.6 insulated copper tube crimping lug M8 stud black · · · Insulation sleeve in Polyamide PA6.6 · · Facilitated introduction of the conductor · · -25°C to +115°C Temperature Range · · Electrolytically tin-plated to avoid oxidisation · · Manufactured from electrolytic Copper wire with a purity greater than 99.9% · · inspection hole for checkin conductor

£0.96inc VAT£0.80 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) Colour insulation Black AWG size 6 Surface protection Tinned Flange shape Ring shape Nominal cross section 16 mm² Bolt dimension (metric) 8 Number of fixing holes 1 With sight-hole Yes Insulated Yes Slender flange model No · Technical Data Sheet – Click to Download
