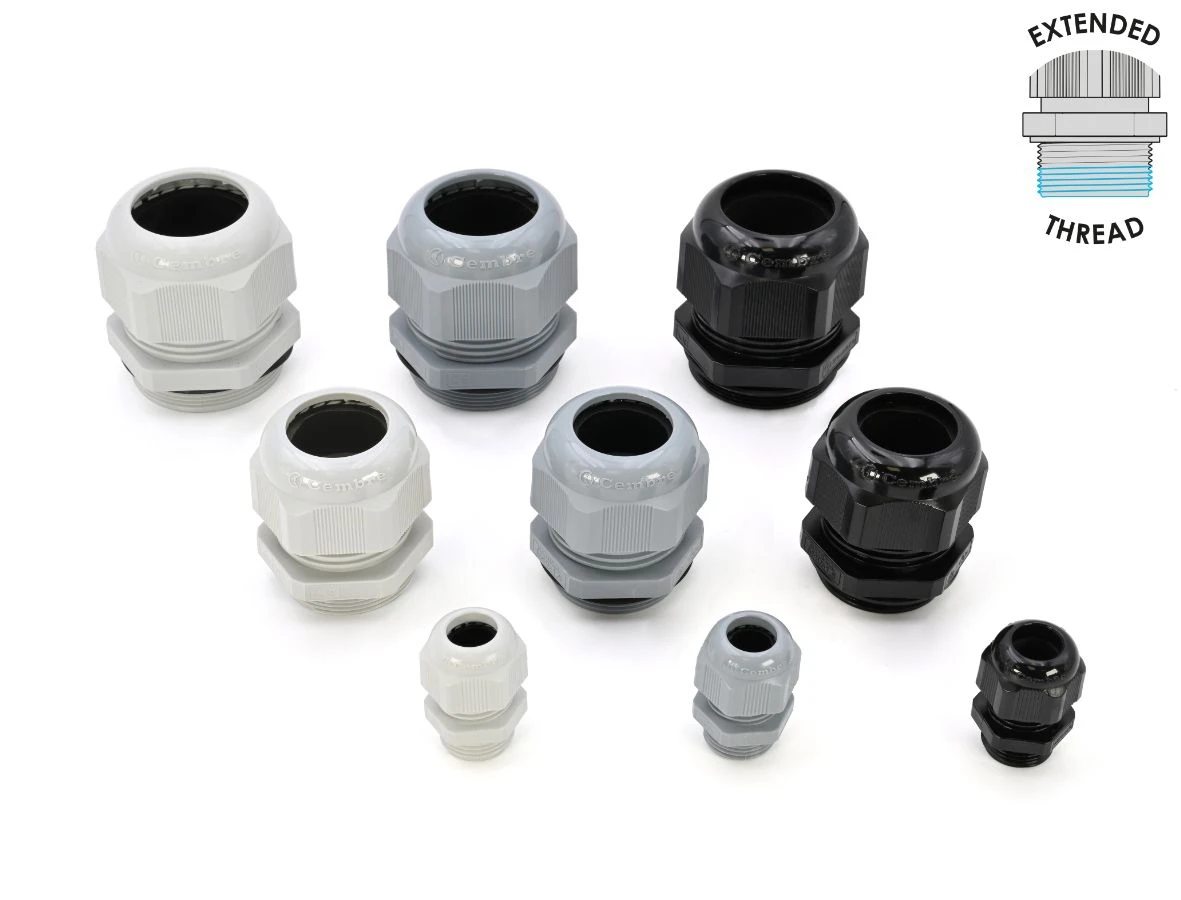

Cembre M32X1.5 Polyamide PA6.6 Extended Thread Cable Gland Black

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Material Plastic Degree of protection (IP rating) IP68 Model Straight Thread type Metric Colour Black Type of sealing Sealing ring Pitch thread 1.5 mm Material qualifier Polyamide (PA) Thread length 15 mm Spanner width 36 mm Nominal thread size metric/PG 32 Hexagon angular dimension 36 mm RAL number 9005 Suitable for cable outer diameter 13 – 21 mm Working temperature -40 – 100 °C Shock resistant Yes With strain relief Yes Glass fibre reinforced No Explosion-tested version No Screened No Bend radius protection/trumpet flare No Locknut included No For armoured cable No Snapping in opening No Separable (split) screw gland No Flat cable sealing No Multi cable sealing No EMC-version No Halogen free No · Technical Data Sheet – Click to Download
