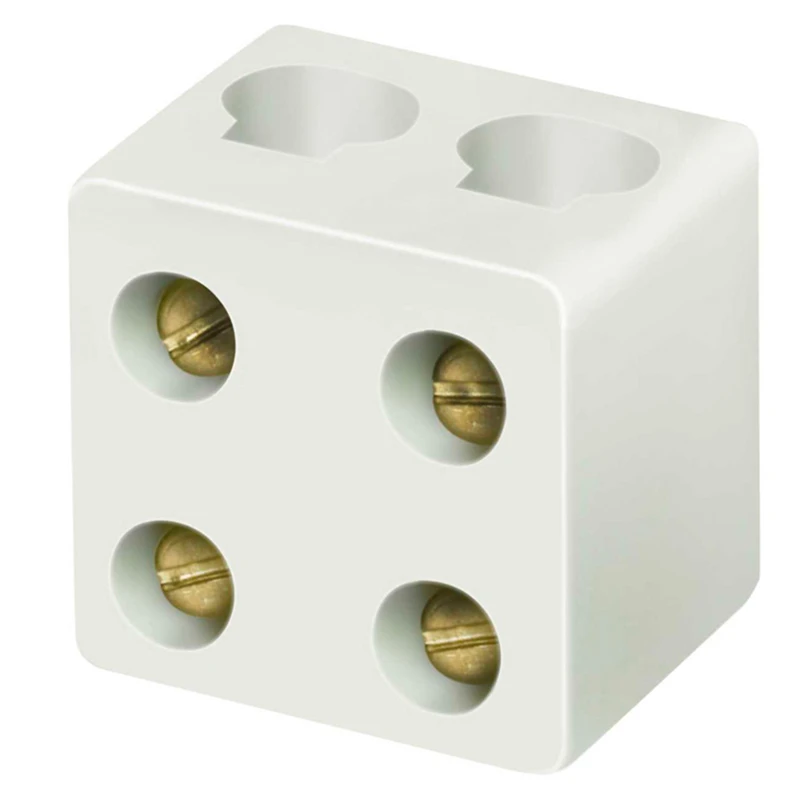

Connector Double Pole 15A Porcelain Non Inflammable
Connector Double Pole 15A Porcelain Non Inflammable
Connector Double Pole 15A Porcelain Non Inflammable - Image 2

Connector Double Pole 15A Porcelain Non Inflammable

£0.96 Incl. VAT

Electrical Connector made up of a porcelain housing body designed to allow conductors to join together with other conductors as well as terminals of apparatus/equipment. · · · Ceramic un-glazed body · · Chemical resistant · · Non inflammable · · 280°C Ambient temperature · · Centre fixing

487 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PC152 Categories: , , Brand: Part Number: 1000015873

Description

Technical Specifications  Technical Specifications Single- and multi-pole terminal strip Colour White Connection position Above Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Number of poles 2 Rated current In 15 A Rated voltage 450 V Length 21 mm Width 21 mm Width/grid dimension 21 mm · Technical Data Sheet – Click to Download
