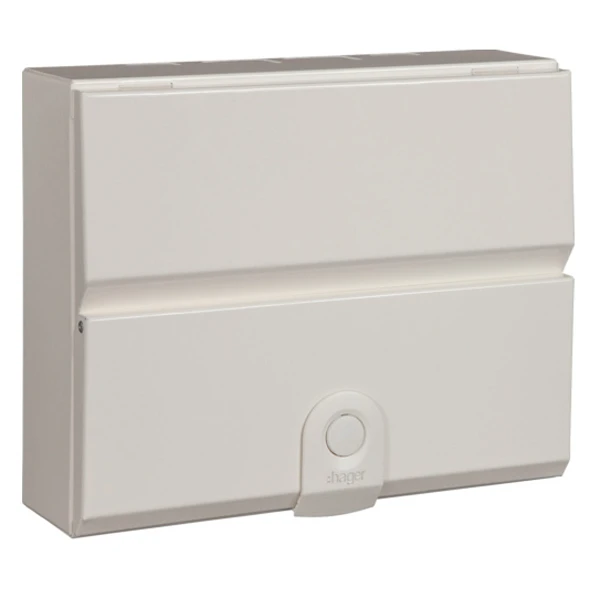

Hager Consumer Unit 10 Way Switch Disconnector Incomer 100A White Steel

Hager Design30 Consumer Unit is an enhanced version designed to be more aesthetically pleasing whilst including extra features to ease installation. Further to the features in the Design 10, the Design 30 comes supplied with a cable clamp installed which allows for incoming meter tails to be safely secured, eliminating stress within the switch terminal. A rear cable protection plate is included as standard, minimising the risk of damage from sharp edges. Lastly, the Design 30 is available without knockouts to give the ultimate smooth finish for where boards are on display and cables enter from the rear. Enclosures come supplied with a full metal DIN rail, 100A switch disconnector incomer and full complement of earth and neutral terminals along. Recommended for use with TT systems when utilising RCBO on outgoing circuits and sell boards contain rear cable entry, boards with knockouts also contain top and bottom knockouts. · · · Conforms to BS EN 61439-3 including Annex ZB (16kA rating) · · With marking labels, busbar, instructions, rear cable protector plate and meter tail clamp · · 1-Row metal switch disconnector incomer enclosures
