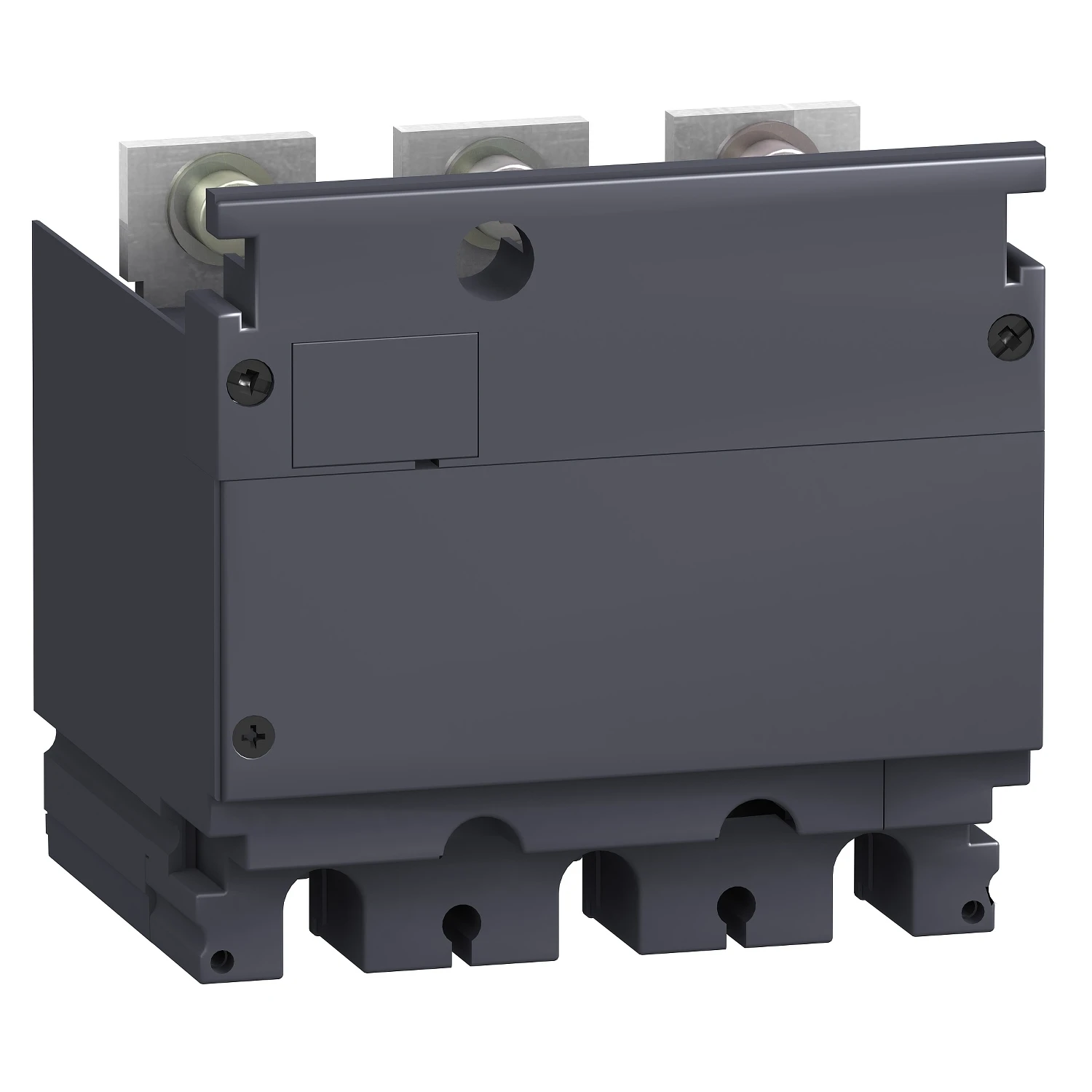

Schneider Electric Current Transformer Module Triple Pole 150A for NSX100-250

This is an additional current transformer module of 150A rating with voltage measurement output for 3 poles ComPact NSX 160/250 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 150A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 1.1VA. The class accuracy is 1. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40. · · · This is an additional current transformer module with voltage measurement output of 150A rating for 3 poles Compact NSX 160 devices. · · This module enables direct connection of a measurement device such as an ammeter. · · The module is installed directly on the downstream circuit breaker power terminals. · · The current at the secondary winding is 5A. · · The rated voltage Ue is 530VAC 50/60Hz. · · There are 3 voltage outputs including protection with automatic reset, that can be used only for voltage measurement. · · The power consumption accuracy is 5VA (class 3). · · There is a class II insulation level between the front face and the power circuits. · · The protection degree is IP40.
