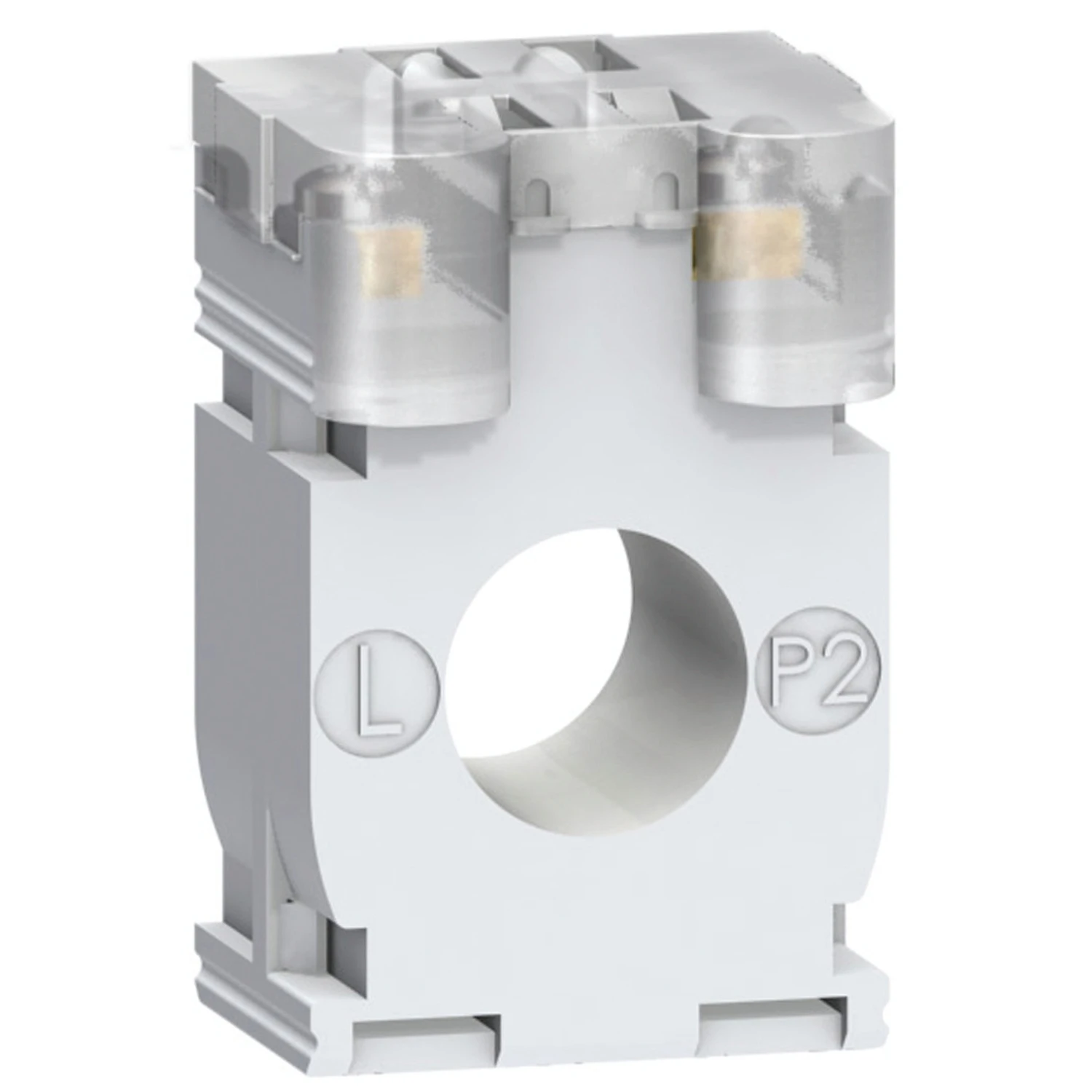

Current transformer tropicalised DIN mount 150 5 for cables d. 21
Current transformer tropicalised DIN mount 150 5 for cables d. 21
Current transformer tropicalised DIN mount 150 5 for cables d. 21 - Image 2
Current transformer tropicalised DIN mount 150 5 for cables d. 21 - Image 3

Current transformer tropicalised DIN mount 150 5 for cables d. 21

£59.78 Incl. VAT

This current transformer, tropicalised for cable, has a line rated current of 150 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 21 mm. Burden and accuracy class as follows: class 0.5 maximum power: 3 VA, class 1 maximum power: 4 VA, class 3 maximum power: 5 VA. · · · This current transformer, tropicalised for cable, has a line rated current of 150 A and a secondary current rating of 5 A. · · This current transformer allow a maximum cable outer diameter of 21 mm. · · UL94 class V0 · · Burden and accuracy class as follows: class 0.5 maximum power: 3 VA, class 1 maximum power: 4 VA, class 3 maximum power: 5 VA. · · Minimum operating temperature -40 °C · · Sheet elements 45

9 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: METSECT5CC015 Categories: , , Brand: Part Number: 2500619000

Description

Technical Specifications  Technical Specifications Current transformer Opening diameter 21.00 mm Accuracy class 0.50 Rated secondary current 5.00 A Rated secondary apparent power 5.00 VA Number of primary inputs 1.00 Rated primary current 150.00 A Calibrated Yes With shock protection No Snap mounting No With copper rail No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188810
