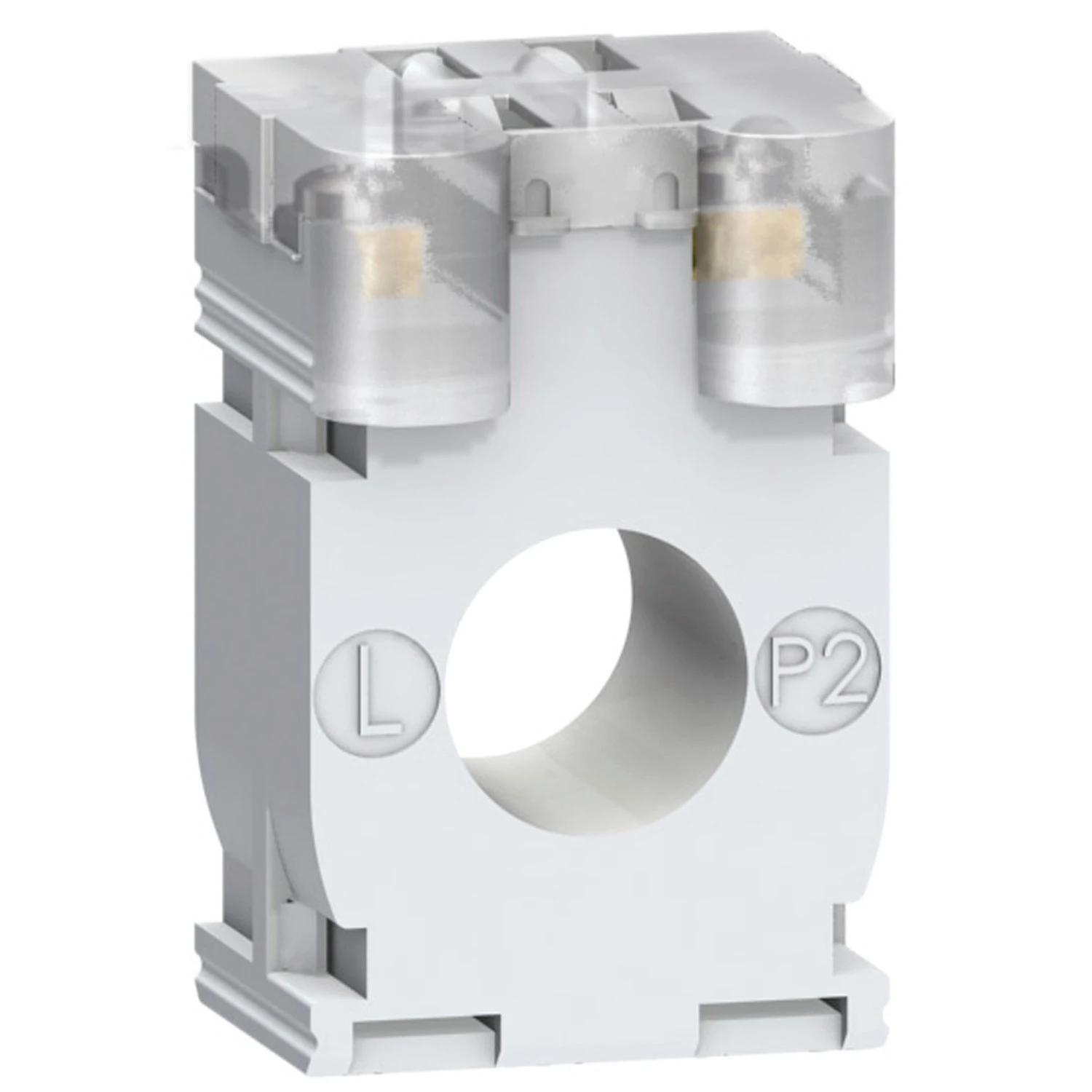

Current transformer tropicalised DIN mount 60 5 for cables d. 21
Current transformer tropicalised DIN mount 60 5 for cables d. 21
Current transformer tropicalised DIN mount 60 5 for cables d. 21 - Image 2
Current transformer tropicalised DIN mount 60 5 for cables d. 21 - Image 3

Current transformer tropicalised DIN mount 60 5 for cables d. 21

£58.43 Incl. VAT

This current transformer, tropicalised for cable, has a line rated current of 60 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 21 mm. Burden and accuracy class as follows: class 1 maximum power: 1.25 VA, class 3 maximum power: 2 VA. · · · This current transformer, tropicalised for cable, has a line rated current of 60 A and a secondary current rating of 5 A. · · This current transformer allow a maximum cable outer diameter of 21 mm. · · Storage temperature -25C 55C · · Burden and accuracy class as follows: class 1 maximum power: 1.25 VA, class 3 maximum power: 2 VA.

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: METSECT5CC006 Categories: , , Brand: Part Number: 2500619034

Description

Technical Specifications  Technical Specifications Current transformer Rated secondary current 5.00 A Rated primary current 60.00 A Accuracy class 1.00 Number of primary inputs 1.00 With copper rail No Opening diameter 21.00 mm Rated secondary apparent power 2.00 VA With shock protection No Snap mounting No Calibrated Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188810
