Din Rail Box 32 Module Glazed Door 125A 300 x 465 x 165.5mm
Din Rail Box 32 Module Glazed Door 125A 300 x 465 x 165.5mm
Din Rail Box 32 Module Glazed Door 125A 300 x 465 x 165.5mm - Image 2

Din Rail Box 32 Module Glazed Door 125A 300 x 465 x 165.5mm

£226.78 Incl. VAT

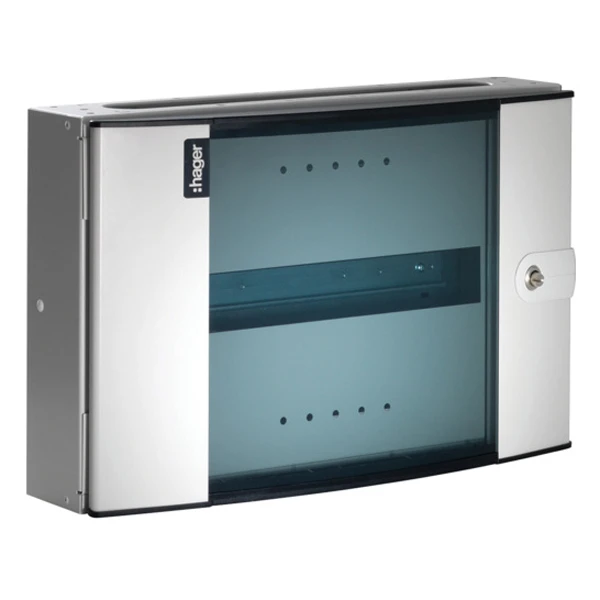

Hager DIN Rail Box is available with glazed door, contains a DIN rail chassis for mounting modular devices. Full width enclosures provide 16 modular ways per row. · · · Key locking door · · RAL 7035 colour · · IP30 protection rating · · Complies with BS EN 62208 standards

22 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JK132EG Categories: , , Brand: Part Number: 2500328102

Description

Technical Specifications  Technical Specifications Empty cabinet Housing material Steel Colour Grey Cover model With notch Type of covering Door Type of door Single Degree of protection (IP rating) IP30 Height 450 mm Number of rows 2 Number of modules 32 Nominal current (In) 125 A Width 465 mm Depth 165.5 mm · Technical Data Sheet – Click to Download
