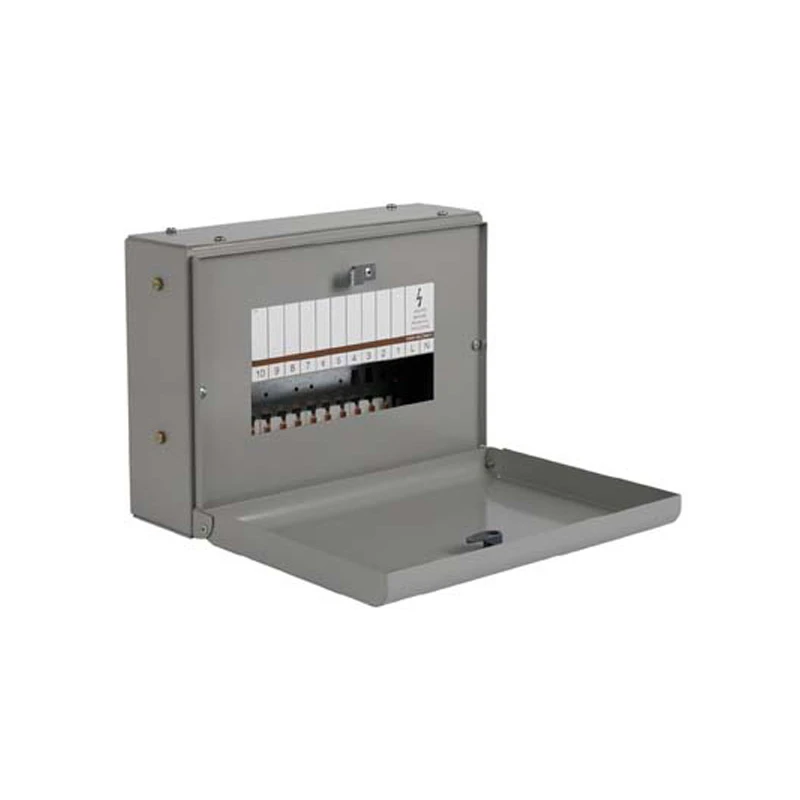

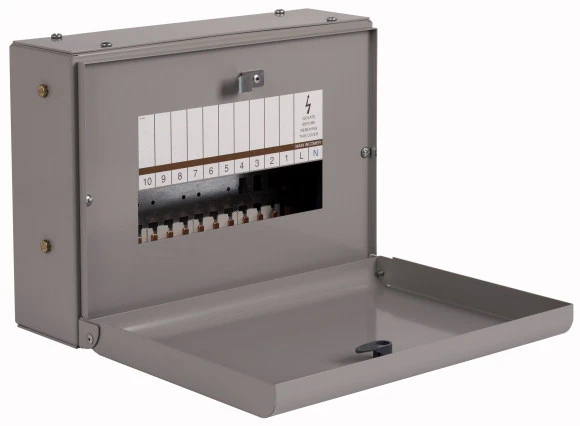

Eaton Distribution Board 10Way Single Pole+Neutral 125A
Eaton Distribution Board 10Way Single Pole+Neutral 125A
Eaton Distribution Board 10Way Single Pole+Neutral 125A - Image 2
Eaton Distribution Board 10Way Single Pole+Neutral 125A - Image 3
Eaton Distribution Board 10Way Single Pole+Neutral 125A - Image 4

Eaton Distribution Board 10Way Single Pole+Neutral 125A

£125.14 Incl. VAT

MEM A distribution board; 10-way SPN · · · Interlinking form for improved positional security · · Removable main busbar for flexible installation · · Fully shrouded neutral busbar for increased safety · · Anti-microbial certified

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAM10 Categories: , , , , , Brand: Product Code: 2500329215

Description

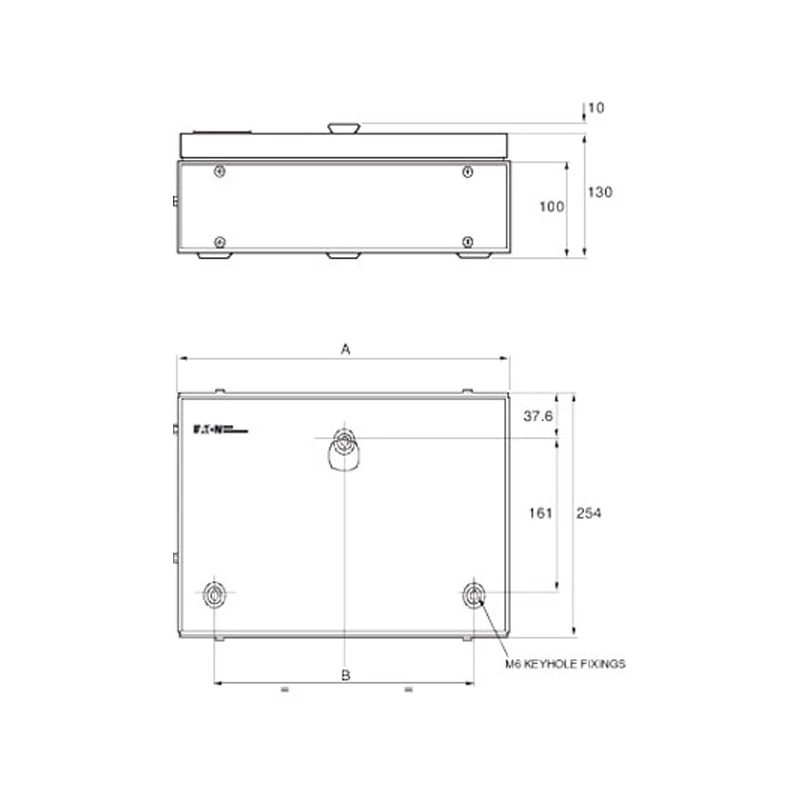

Technical Specifications  Technical Specifications Small distribution board Colour Grey Type of covering Door Housing material Steel Degree of protection (IP rating) IP3X Mounting method Surface mounted Cover model Closed Width 346 mm RAL number 7004 Height 254 mm Depth 130 mm Number of rows 1 Internal depth 95 mm Recess height 254 mm Recess width 346 mm Recess depth 130 mm Width in number of modular spacings 12 With DIN-rail Yes With lock No Earthing terminal block Yes Neutral terminal block Yes Signal passing door No Transparent cover/door No Extension possible Yes With mounting plate No EMC-version Yes · Technical Data Sheet – Click to Download
