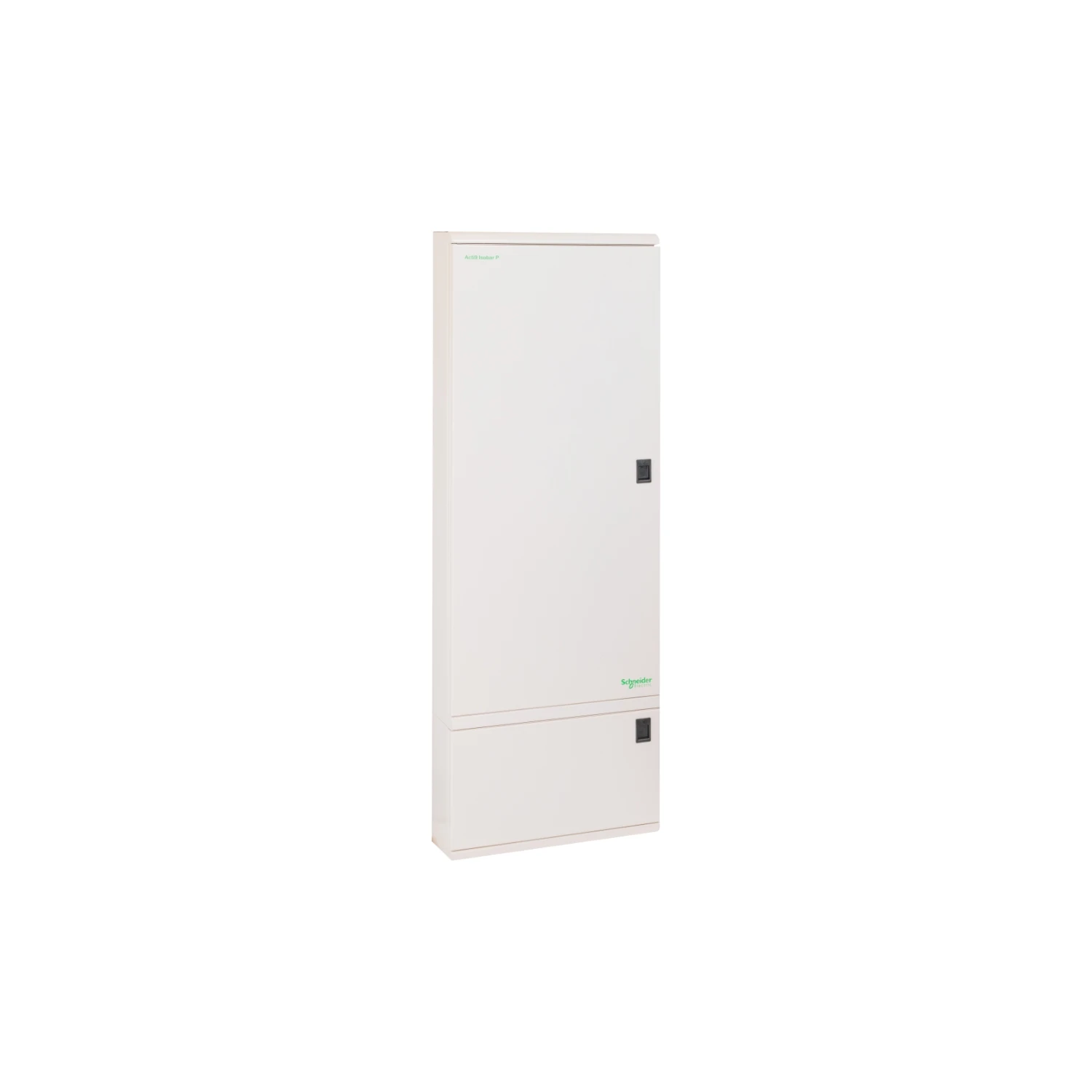

Product image supplied by the manufacturer
Distribution Equipment

Schneider Electric Distribution Board 14+8Way Isobar P Split Metered Db 125A

Brand: Schneider ElectricProduct code: SEA9BPN12514S8Go Magpie Ref: 5060062361313

The Acti9 Isobar P B Type Distribution Board – is a three phase assembly suitable for switching or protective devices – (e.g. circuit breakers, Arc fault detection devices, and residual current devices) – associated with one or more outgoing circuits fed from incoming circuits, together with terminals for the neutral and circuit protective conductors.- It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 1290mm x (D) 139mm. According to BS/EN 60529, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL9001). This distribution board is compliant with BS/EN 61439-3. · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product

£4,069.81inc VAT£3,391.51 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board Width 470 mm Height 1290 mm Depth 139 mm RAL number 9001 Width in number of modular spacings 14 Number of rows 2 With lock Yes With DIN-rail Yes Extension possible Yes Transparent cover/door No EMC-version No With mounting plate No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224038
