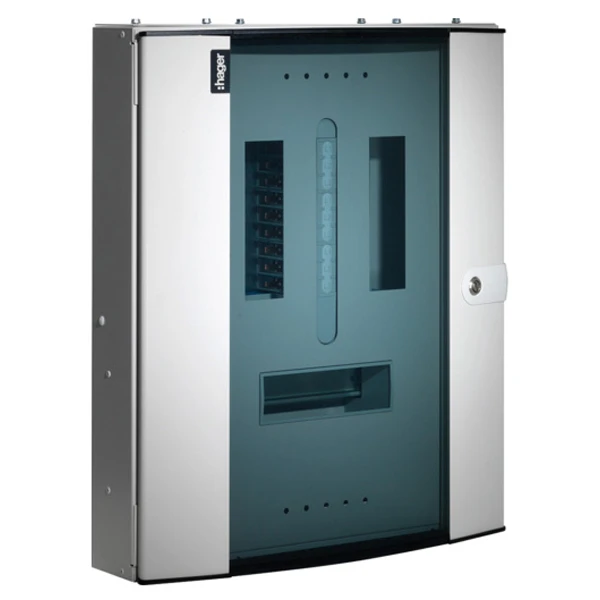

Distribution Board 18 Way Triple Pole+Neutral Type B Glazed Door 125A 63A Outgoing
£481.46 Incl. VAT
Hager Invicta 3 surface mounted steel Distribution Enclosure features IP3X rated, comes with a plain door. Fully shrouded copper busbar, rated 25kA short circuit conditional current. Supplied without incoming and outgoing devices. A Hager incomer kit must be used. · · · Complies with BS EN 61439-3 Annex ZB · · Invicta 3 (125A Incoming, 63A Outgoing) · · 125A and 100A 50mm², 63A 25mm² incoming cable sizes
64 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board Housing material Steel Colour Grey Type of covering Door Mounting method Surface mounted Degree of protection (IP rating) IP30 Width 465 mm Height 1100 mm Depth 132.5 mm With DIN-rail No · Technical Data Sheet – Click to Download
