FULL-8775
3 product images available
Distribution Equipment

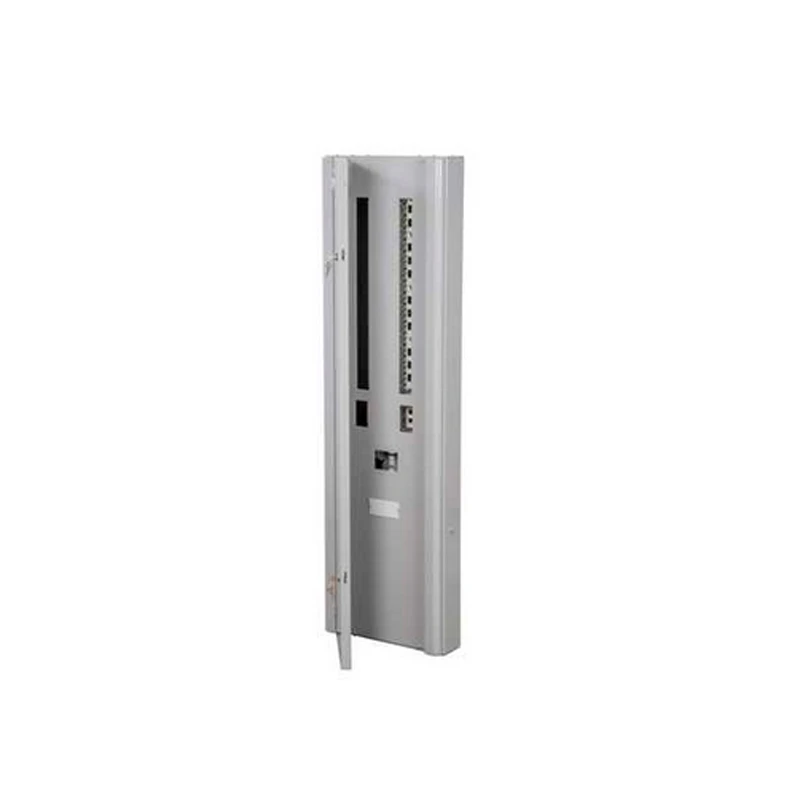

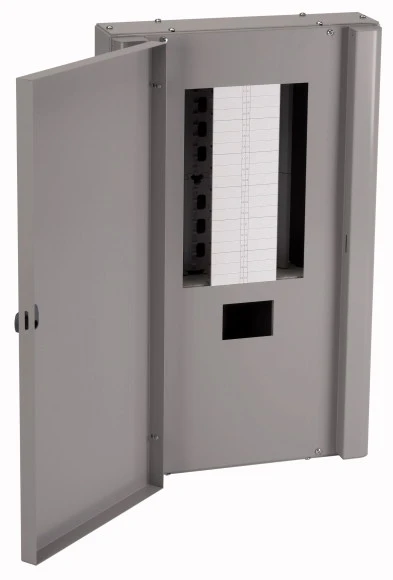

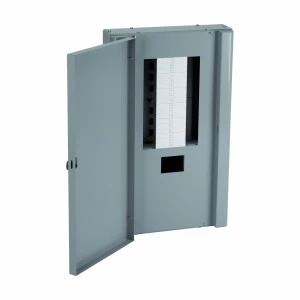

Eaton Distribution Board 24Way Triple Pole+Neutral 250A

Brand: EatonProduct code: EBM242HGo Magpie Ref: 5060062332311

MEM B distribution board; 24-way TPN · · · Terminal shield covers fitted for increased safety · · Combination screw heads on all devices · · Removable gland plates are provided top/bottom for ease of installation · · Lockable door · · Removable gland plates are provided top/bottom for ease of installation · · Removable front door to aid accessibility to devices · · Covers fit within enclosure dimensions allowing adjacent mounting · · Modern, curved edges enhance appearance of board · · Secondary cover, slides over two location screws at bottom of board for easier fastening · · These boards include 2 TPN outgoing ways for 27mm MCB (upto 125A)

£1,005.31inc VAT£837.76 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board Housing material Steel Colour Grey Degree of protection (IP rating) IP40 Type of covering Door Width 440 mm Mounting method Surface mounted Cover model Closed RAL number 7004 Height 1501 mm Depth 130 mm Internal depth 100 mm Recess depth 130 mm Number of rows 2 Recess height 1501 mm Recess width 440 mm Width in number of modular spacings 75 Extension possible No Signal passing door No Earthing terminal block No Neutral terminal block No With DIN-rail No EMC-version No Transparent cover/door No With lock No With mounting plate No · Technical Data Sheet – Click to Download
