Distribution Board 8Way Triple Pole+Neutral 250A
Distribution Board 8Way Triple Pole+Neutral 250A

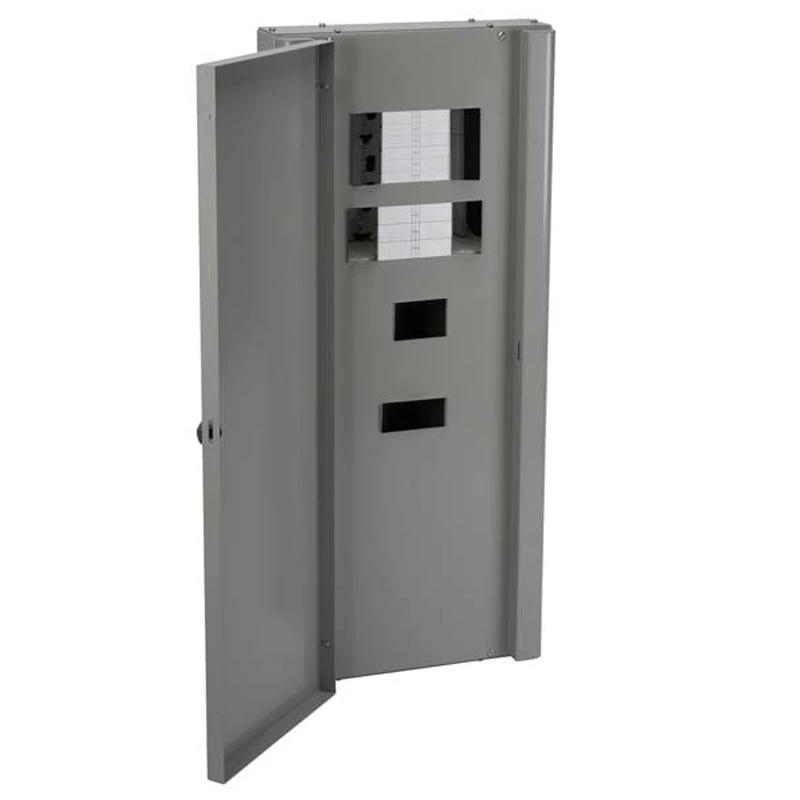

Distribution Board 8Way Triple Pole+Neutral 250A - Image 2

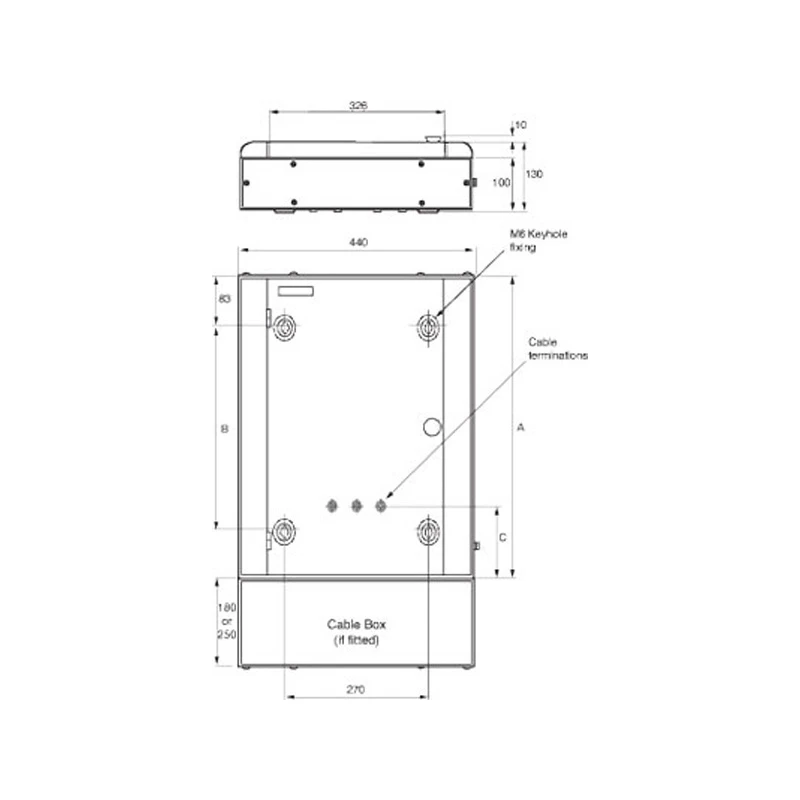

Distribution Board 8Way Triple Pole+Neutral 250A - Image 3

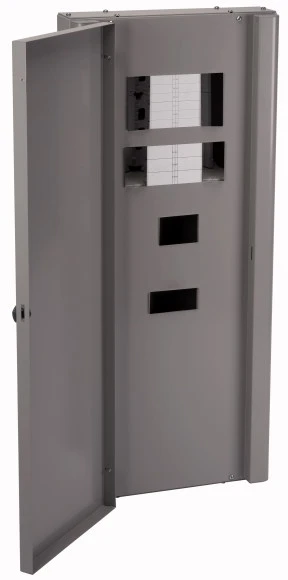

Distribution Board 8Way Triple Pole+Neutral 250A - Image 4

Distribution Board 8Way Triple Pole+Neutral 250A

£395.24 Incl. VAT

MEM B distribution board; 8-way TPN · · · Removable busbar assembly to assist installation · · Interlinking form for improved positional security · · Welded ‘case end’ design board · · Removable gland plates provides super ‘stiff’ construction, even with gland plates removed · · Removable gland plates are provided top/bottom for ease of installation · · Removable front door to aid accessibility to devices · · Covers fit within enclosure dimensions allowing adjacent mounting · · Modern, curved edges enhance appearance of board · · Secondary cover, slides over two location screws at bottom of board for easier fastening · · These boards include 2 TPN outgoing ways for 27mm MCB (upto 125A)

19 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EBM82H Categories: , , Brand: Part Number: 2500329748

Description

Technical Specifications  Technical Specifications Small distribution board Colour Grey Housing material Steel Type of covering Door Mounting method Surface mounted Cover model Closed Degree of protection (IP rating) IP40 Width 440 mm Recess depth 130 mm Number of rows 2 Recess width 440 mm Internal depth 100 mm Recess height 1055 mm Depth 130 mm RAL number 7004 Height 1055 mm Width in number of modular spacings 27 UV resistant No Transparent cover/door No With mounting plate No With lock No Extension possible No Signal passing door No EMC-version No Earthing terminal block No Neutral terminal block No With DIN-rail No · Technical Data Sheet – Click to Download
