Distribution Equipment

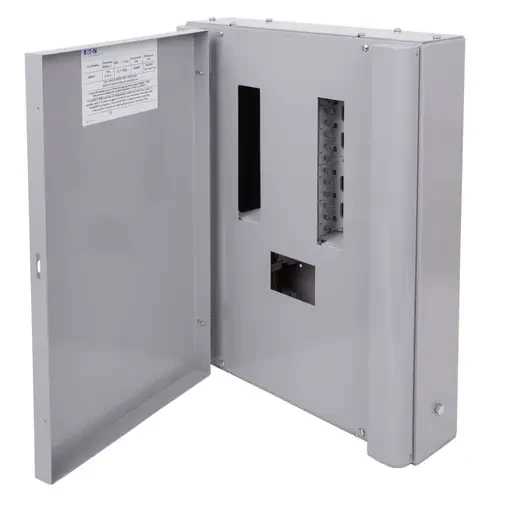

Eaton Distribution Board 8Way Triple Pole+Neutral 125A

Brand: EatonProduct code: EBM81Go Magpie Ref: 5060062304981

MEM B distribution board; 8-way TPN · · · Additional functional earthing option · · Clean earth options available · · Removable busbar assembly to assist installation · · Interlinking form for improved positional security · · Removable gland plates are provided top/bottom for ease of installation · · Removable front door to aid accessibility to devices · · Covers fit within enclosure dimensions allowing adjacent mounting · · Modern, curved edges enhance appearance of board · · Secondary cover, slides over two location screws at bottom of board for easier fastening

£282.79inc VAT£235.66 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board Colour Grey Housing material Steel Cover model Closed Type of covering Door Width 440 mm Mounting method Surface mounted RAL number 7004 Height 564 mm Depth 130 mm Internal depth 100 mm Recess width 440 mm Number of rows 2 Recess depth 130 mm Recess height 564 mm Width in number of modular spacings 24 With mounting plate No With lock No Transparent cover/door No Earthing terminal block No Neutral terminal block No With DIN-rail No Signal passing door No Extension possible No EMC-version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
