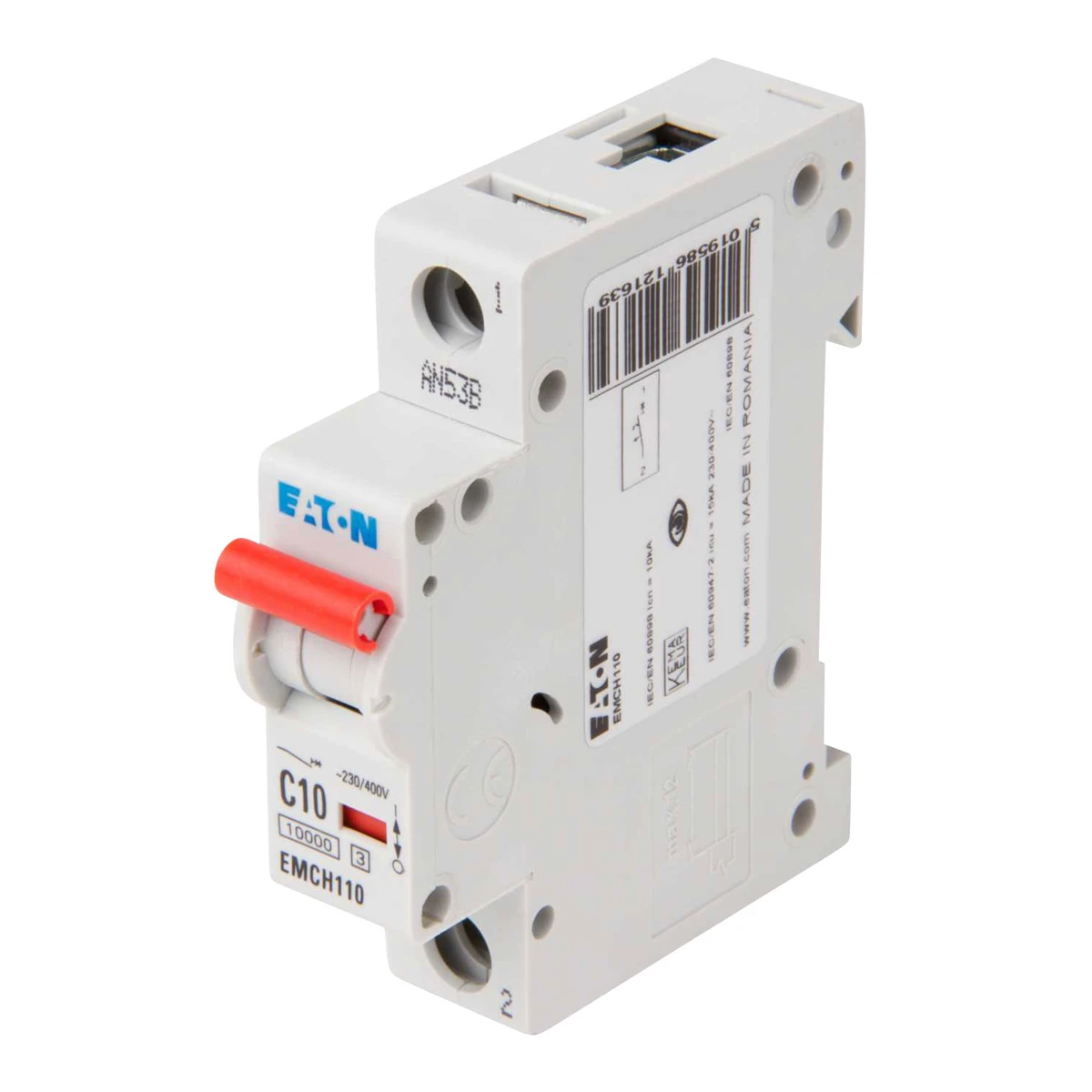

Eaton EMCH110 Memshield 3 MCB 1 Pole 10A Type C 110/15kA 18 x 80 x 75mm

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Voltage type AC Tripping characteristic (type/curve) C Rated current 10 A Recess depth 70.5 mm Rated impulse-withstand voltage (Uimp) 4 kV Rated voltage 240 V Width in number of modular spacings 1 Rated insulation voltage Ui 440 V Number of poles (total) 1 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of protected poles 1 Pollution degree 2 Over voltage category 3 Current limiting class 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0 kA Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral No Explosion-proof No Flush-mounted installation Yes Additional equipment possible Yes
