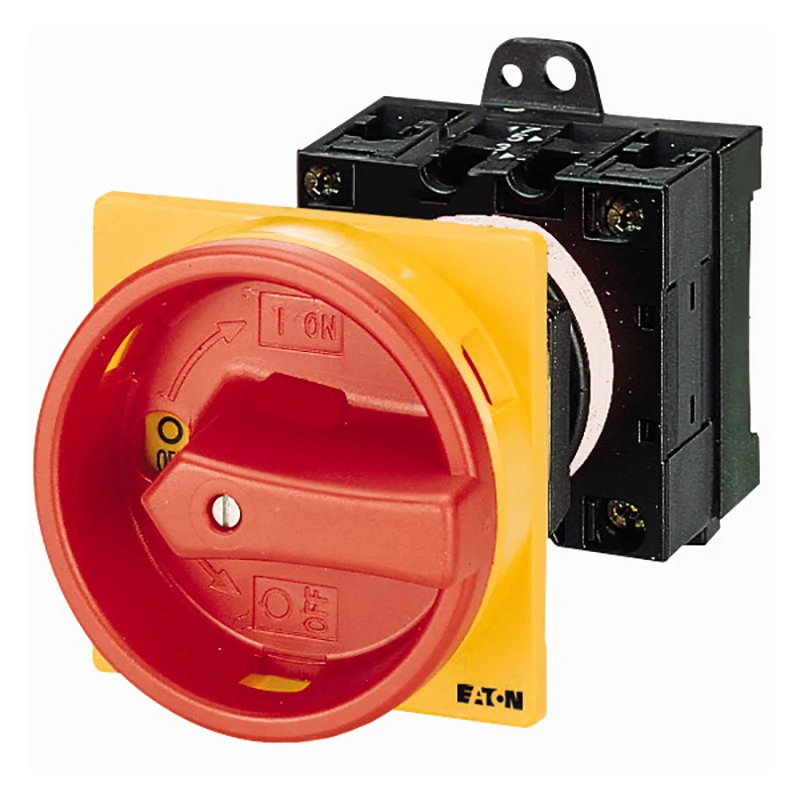

Eaton Main switch T0 20 A rear mounting 2 contact unit(s) 3 pole Emergency switching off function With red rotary handle and yellow locking ring Lockable in t

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Colour control element Red Type of control element Door coupling rotary drive Degree of protection (IP), front side IP65 Degree of protection (NEMA) 12 Type of electrical connection of main circuit Screw connection Device construction Suitable for fixed installation Width 65 mm Rated short-time withstand current lcw 0.32 kA Rated permanent current Iu 20 A Conditioned rated short-circuit current Iq 6 kA Rated permanent current at AC-21, 400 V 20 A Switching power at 400 V 5.5 kW Number of auxiliary contacts as change-over contact 0 Rated permanent current at AC-23, 400 V 13.3 A Number of switches 1 Rated operation power at AC-23, 400 V 5.5 kW Max. rated operation voltage Ue AC 690 V Number of poles 3 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 5.5 kW Depth 128 mm Height 74 mm Rated operating voltage 690 – 690 V Interlockable Yes Version as main switch Yes Version as safety switch No Version as maintenance-/service switch Yes Motor drive integrated No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for distribution board installation No Suitable for intermediate mounting Yes Version as reversing switch No Motor drive optional No Voltage release optional No With pre-assembled cabling No Version as emergency stop installation Yes · Technical Data Sheet – Click to Download
