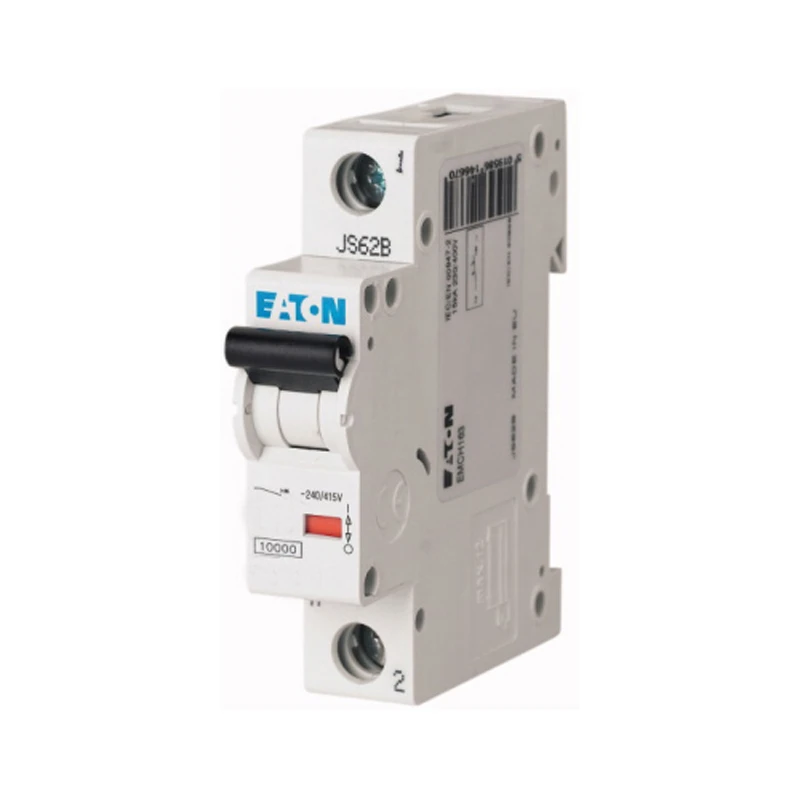

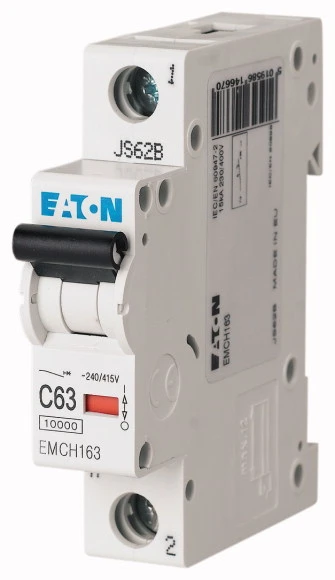

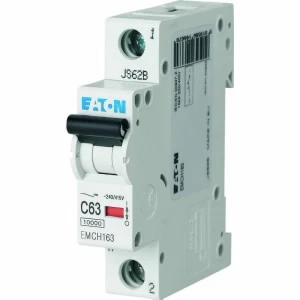

Eaton MCB Single Pole Type C 63A 25Ka

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Voltage type AC Tripping characteristic (type/curve) C Recess depth 75 mm Rated insulation voltage Ui 440 V Current limiting class 3 Rated voltage 230 V Pollution degree 2 Rated current 63 A Width in number of modular spacings 1.5 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0 kA Number of protected poles 1 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 25 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 25 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 0 kA Number of poles (total) 1 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 60 Hz Connectable conductor cross section solid-core 2.5 – 50 mm² Connectable conductor cross section multi-wired 2.5 – 50 mm² Ambient temperature during operating -25 – 55 °C Explosion-proof No Concurrently switching N-neutral No Additional equipment possible Yes Flush-mounted installation No · Technical Data Sheet – Click to Download
