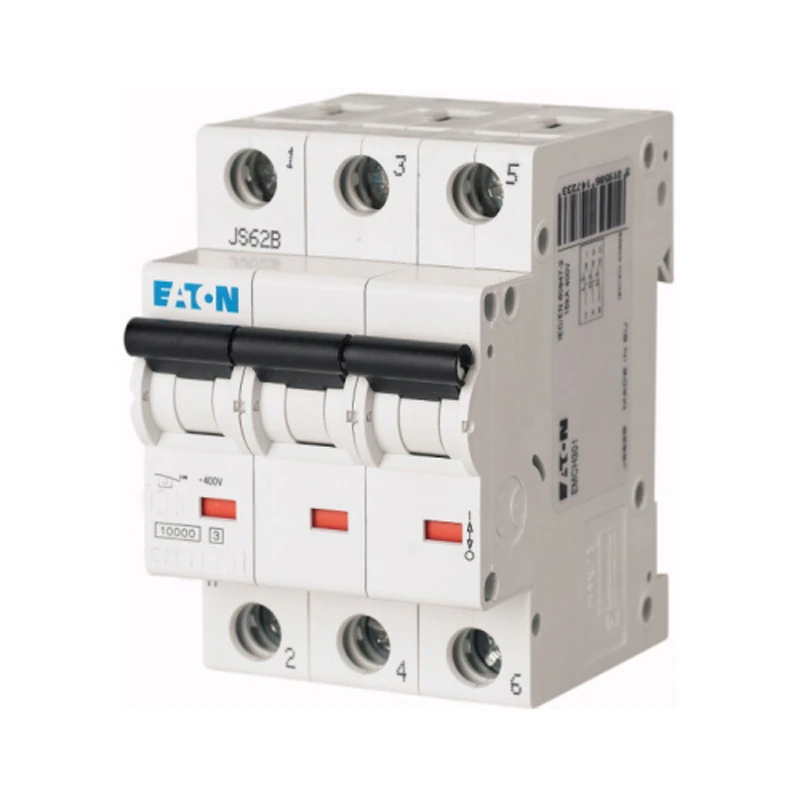

Eaton MCB Triple Pole Type C 125A 20Ka 81 x 90 x 80.5mm
Eaton MCB Triple Pole Type C 125A 20Ka 81 x 90 x 80.5mm
Eaton MCB Triple Pole Type C 125A 20Ka 81 x 90 x 80.5mm - Image 2

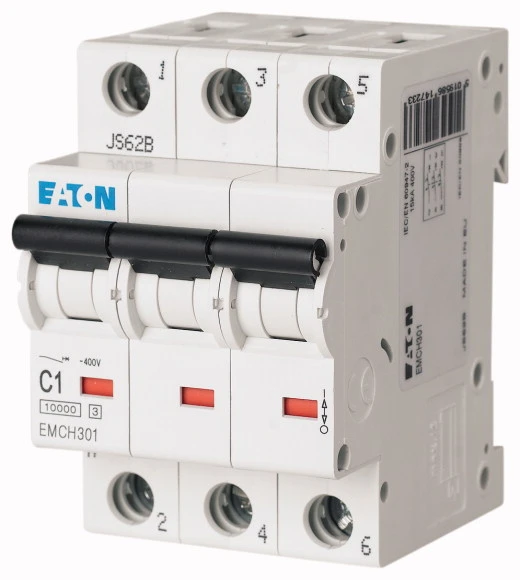

Eaton MCB Triple Pole Type C 125A 20Ka 81 x 90 x 80.5mm - Image 3

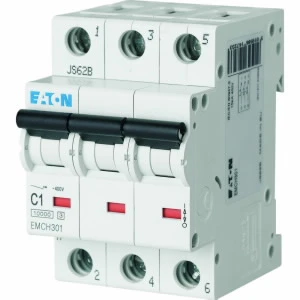

Eaton MCB Triple Pole Type C 125A 20Ka 81 x 90 x 80.5mm - Image 4

Eaton MCB Triple Pole Type C 125A 20Ka 81 x 90 x 80.5mm

£153.58 Incl. VAT

EM miniature circuit-breaker, 3 pole, trip type: C, rated operational current In: 125 A, rated switching capacity according to IEC/EN 60947-2: 15 kA, switchgear for residential and non-residential applications · · · 15kA Short circuit rating (IEC/EN 60947-2)

5 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMCS3125 Categories: , , Brand: Part Number: 2500331365

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Voltage type AC Rated current 125 A Recess depth 75 mm Rated voltage 400 V Over voltage category 3 Width in number of modular spacings 4.5 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 0 kA Number of poles (total) 3 Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Rated insulation voltage Ui 440 V Pollution degree 2 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Number of protected poles 3 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 2.5 – 50 mm² Connectable conductor cross section multi-wired 2.5 – 50 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible Yes Explosion-proof No · Technical Data Sheet – Click to Download
