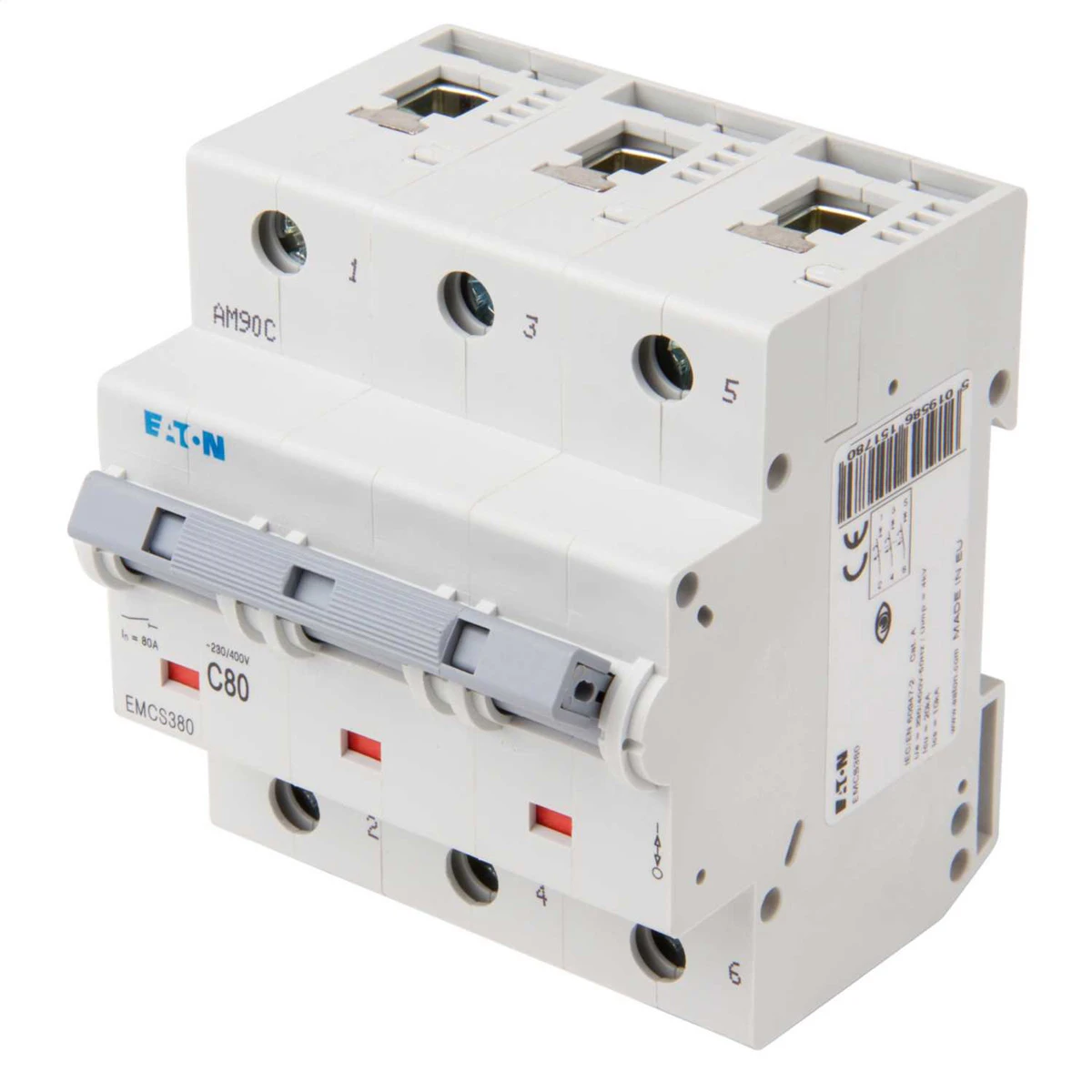

Eaton MCB Triple Pole Type C 80A 20kA
Eaton MCB Triple Pole Type C 80A 20kA
Eaton MCB Triple Pole Type C 80A 20kA - Image 2
Eaton MCB Triple Pole Type C 80A 20kA - Image 3
Eaton MCB Triple Pole Type C 80A 20kA - Image 4

Eaton MCB Triple Pole Type C 80A 20kA

£153.58 Incl. VAT

EM miniature circuit-breaker, 3 pole, trip type: C, rated operational current In: 80 A, rated switching capacity according to IEC/EN 60947-2: 20 kA, switchgear for residential and non-residential applications · · · DIN rail mountable and suitable for use with both pin and comb type busbar systems · · Designed & tested in accordance with IEC 60898 & IEC 60947-2 · · Suitable for 230/400 VAC systems and are calibrated for use at 40°C · · Fitted with box clamp terminals suitable for use with cables up to 25mm2 · · Suites with the other modular devices including RCBOs, RCCBs and isolators · · Positive contact is flag indicator · · Operating temperature -25 to 55 °C · · Impulse withstand voltage 4kV · · Certified by KEMA · · Box clamp barrier to prevent incorrect cable insertion

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMCS380 Categories: , , Brand: Part Number: 2500331417

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Voltage type AC Recess depth 75 mm Rated impulse-withstand voltage (Uimp) 4 kV Degree of protection (IP rating) IP20 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Current limiting class 3 Number of protected poles 3 Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 20 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 0 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0 kA Number of poles (total) 3 Over voltage category 3 Connectable conductor cross section multi-wired 2.5 – 50 mm² Connectable conductor cross section solid-core 2.5 – 50 mm² Frequency 50 – 60 Hz Rated current 80 A Rated voltage 400 V Width in number of modular spacings 4.5 Pollution degree 2 Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral No Explosion-proof No Additional equipment possible Yes Flush-mounted installation No · Technical Data Sheet – Click to Download
