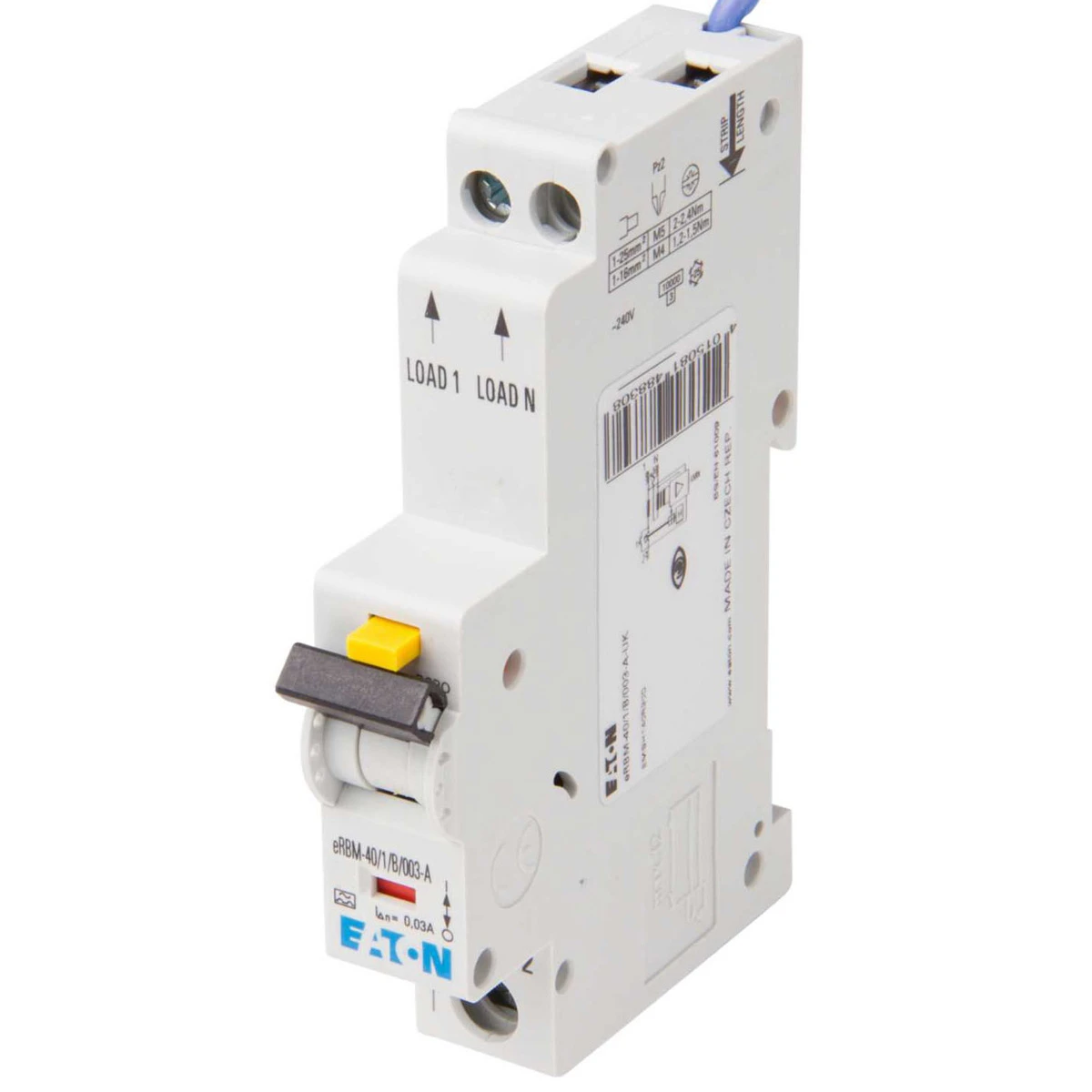

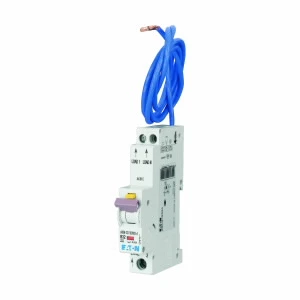

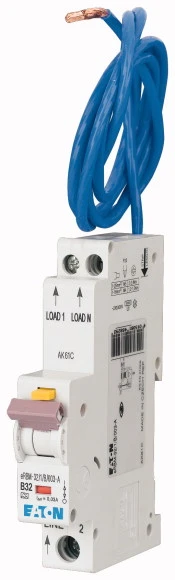

Eaton Memshield 3 RCBO SP Type B 40A 30mA 10kA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) B Disconnection characteristic Undelayed Leakage current type A Frequency 50/60 Hz Voltage type AC Recess depth 69.5 mm Power loss 14.7 W Rated insulation voltage Ui 500 V Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated short-circuit breaking capacity according to EN 61009 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated voltage 240 V Rated current 40 A Rated fault current 0.03 A Number of poles (total) 1 Pollution degree 2 Rated short-circuit breaking capacity IEC 60947-2 0 kA Surge current capacity 0.25 kA Over voltage category 3 Number of protected poles 1 Current limiting class 3 Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C With interlocking device No Flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
