Electronic RCD/MCB combination 10A 30 mA MCB trip characteristic: C 1p RCD trip characteristic: AC

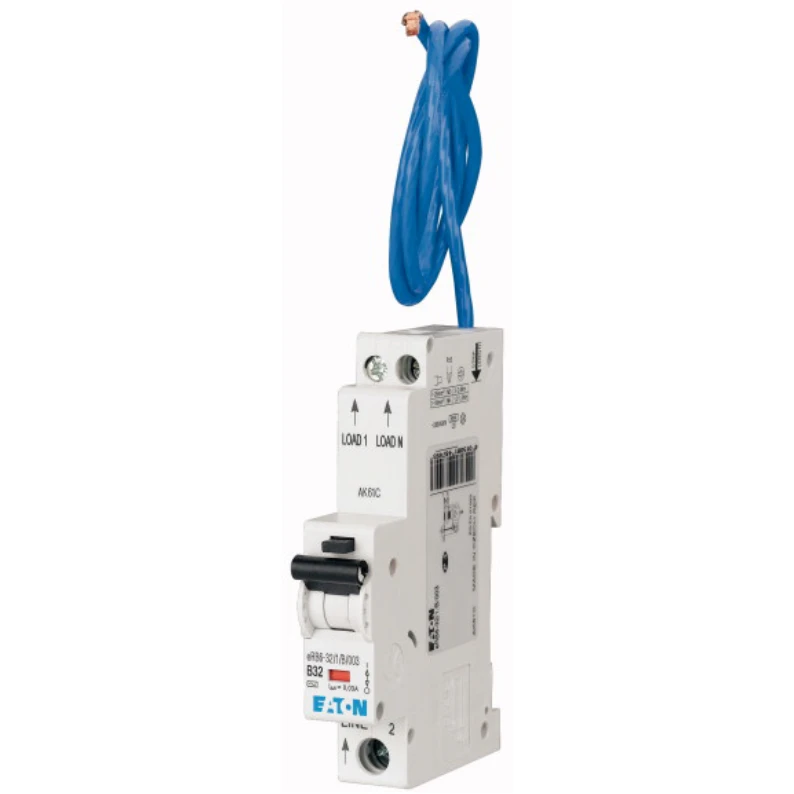

Electronic RCD/MCB combination 10A 30 mA MCB trip characteristic: C 1p RCD trip characteristic: AC
Electronic RCD/MCB combination 10A 30 mA MCB trip characteristic: C 1p RCD trip characteristic: AC - Image 2

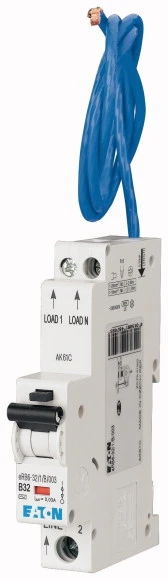

Electronic RCD/MCB combination 10A 30 mA MCB trip characteristic: C 1p RCD trip characteristic: AC - Image 3

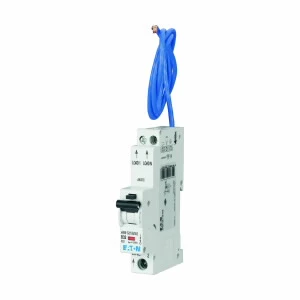

Electronic RCD/MCB combination 10A 30 mA MCB trip characteristic: C 1p RCD trip characteristic: AC - Image 4

Electronic RCD/MCB combination 10A 30 mA MCB trip characteristic: C 1p RCD trip characteristic: AC

£55.58 Incl. VAT

Electronic residual current operated circuit-breaker with overcurrent protection; 10A; 30mA; miniature circuit-breaker characteristic curve: C; 1p; residual current circuit-breaker trip characteristic: AC · · · Electronic residual current device/miniature circuit breaker combination in only 1MU · · Design width of one module unit only · · Line voltage-independent tripping · · Contact position indicator red – green · · Can be sealed with leads in the on and off position · · Color coded switching toggle for 10kA versions (designating the rated current)

15 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAD10CH30C Categories: , , Brand: Part Number: 2500504399

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Disconnection characteristic Undelayed Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Frequency 50/60 Hz Voltage type AC Leakage current type AC Rated current 10 A Rated voltage 240 V Width in number of modular spacings 1 Current limiting class 3 Number of protected poles 1 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated short-circuit breaking capacity according to EN 61009 6 kA Power loss 2.5 W Rated fault current 0.03 A Rated insulation voltage Ui 500 V Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Number of poles (total) 1 Connectable conductor cross section multi-wired 1 – 25 mm² Connectable conductor cross section solid-core 1 – 25 mm² Recess depth 69.5 mm Pollution degree 2 Rated short-circuit breaking capacity IEC 60947-2 0 kA Surge current capacity 0.25 kA Ambient temperature during operating -25 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
