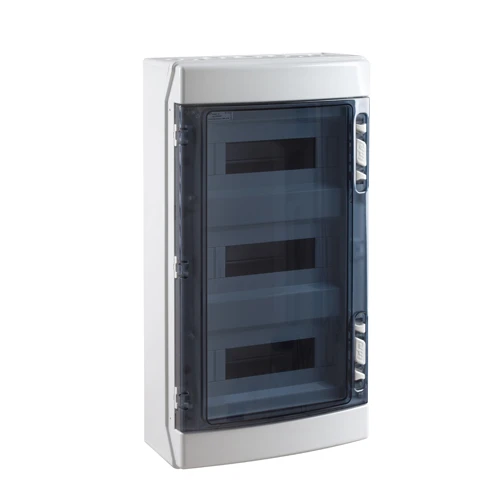

Product image supplied by the manufacturer
Din Rail Enclosures

IDE Enclosure Distribution 36 Module PC Window 586X310X148mm RAL 7035 ABS Halogen

Product code: CDN36PT3F/RRGo Magpie Ref: 5060062360970

IP65 surface distribution box with neutral and earth bars. A capacity of 36 modules with a transparent window. · · · Frame is covered with a sealing gasket that guarantees the IP65 protection · · Indoor & Outdoor use · · Transparent Window · · Base with double height providing greater space on the inside for wiring and devices · · Reinforcement rib delivering greater rigidity · · Top and bottom cut-outs for the entry of M40 · · DIN rails are supplied assembled in the bases · · Reversible 180° horizontal window opening · · Wall mountable · · Branding & colour options available

£161.20inc VAT£134.33 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board Colour Grey Housing material Plastic Type of covering Door Mounting method Surface mounted Degree of protection (IP rating) IP65 Width 310 mm RAL number 7035 Number of rows 3 Width in number of modular spacings 36 Height 586 mm Depth 148 mm Extension possible No Transparent cover/door Yes With mounting plate No EMC-version No Earthing terminal block Yes Neutral terminal block Yes Signal passing door No With DIN-rail Yes With lock No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
