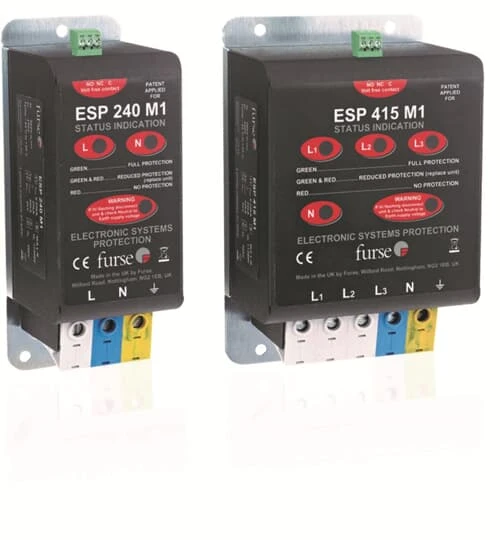

ABB ESP 240M1 Surge Protective Device

SKU: 7TCA085460R0089Go Magpie ID: 5060062343727

ABB ESP M1 Mains Power Protection is primarily to protect systems against transient overvoltage’s or surges from lightning and electrical switching events. Combined Type 1, 2 and 3 tested protector for use on mains power distribution systems primarily to protect connected electronic equipment from transient overvoltage’s on the mains supply, example computer, communications or control equipment. For use at boundaries up to LPZ 0 to protect against flashover through to LPZ 3 to protect sensitive electronic equipment. · · · Full mode design capable of handling partial lightning currents · · Repeated protection in lightning intense environments · · Innovative multiple thermal disconnect technology for safe disconnection from abnormal supplies · · Remote indication facility allows pre-failure warning to be linked to a building management system · · Base provides ultra-low inductance earth bond to metal panels

£585.71inc VAT£488.09 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Surge protection device for power supply systems Signalling at the device Optic Degree of protection (IP rating) IP20 Max. conductor cross section solid (solid, stranded) 16 mm² Max. PV-voltage – V Max. conductor cross section flexible (fine-strand) 16 mm² Voltage protection level N-PE 1 kV Short-circuit breaking capacity (Isccr) 25 kA Max. overcurrent protection device, series connection (fuse) – A Max. discharge surge current (8/20) 40 kA Max. overcurrent protection device, parallel connection (fuse) – A Integrated short-circuit protection selective to fuse gG – A Nominal voltage AC 240 V Max. continuous voltage DC – V Nominal voltage DC – V Voltage protection level L-N 1 kV Nominal discharge surge current 8/20 µs (In) 20 kA Max. voltage (Uc) 280 V Voltage protection level 1 kV Number of conductors (without earthing) 2 With remote signalling contact No System configuration TT Yes System configuration other No System configuration TN-C No System configuration TN-S Yes System configuration IT No System configuration TN Yes System configuration DC No Type / Test class 2 Yes Integrated backup fuse Yes System configuration TN-C-S Yes Integrated short-circuit protection No Leakage-current free No · Technical Data Sheet – Click to Download
