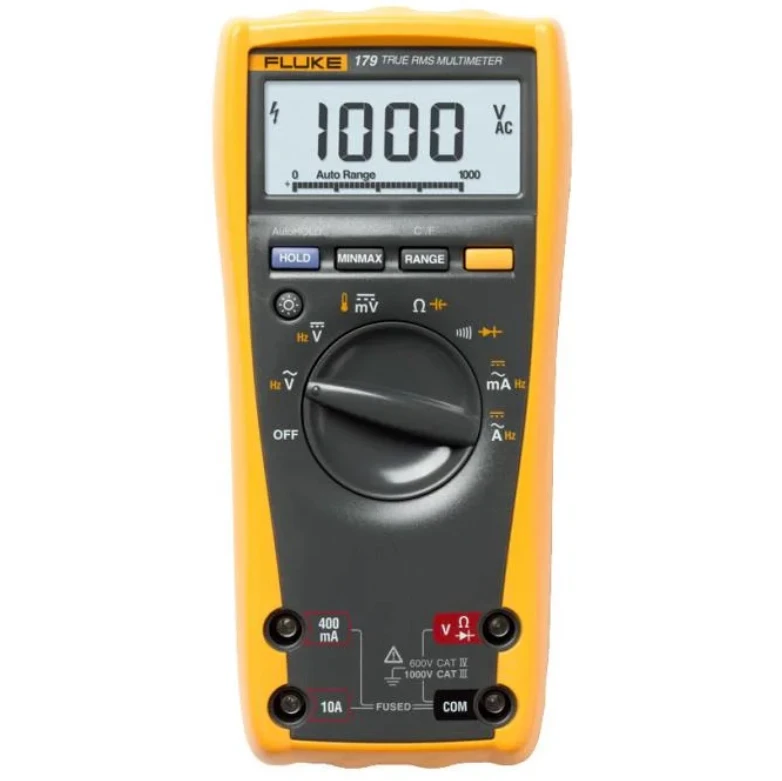

Fluke Digital Multimeter 179 Yellow/Black

Description

Technical Specifications  Technical Specifications Multimeter Lowest resolution- AC current 10 µA Lowest resolution- DC current 10 µA Circuit category measurement CAT IV Lowest resolution- AC voltage 0.1 mV Indication Digital Lowest resolution- Capacitance 0.001 µF Lowest resolution- DC voltage 0.1 mV Lowest resolution- Temperature 0.1 °C Lowest resolution- Resistance 0.1 Ohm Lowest resolution- Frequency 0.01 Hz Measurement range selection Manual/automatic Max. current measuring range, AC 10 A Max. voltage measuring range, AC 1000 V Max. voltage measuring range, DC 1000 V Max. current measuring range, DC 10 A Max. resistance measuring range 50 M Ohm Max. temperature measuring range 400 °C Max. voltage measuring circuit category 600 V Max. frequency measuring range 99.99 kHz Max. capacitance measuring range 9999 µF Insulation resistance measuring range – M Ohm Interface No Measured value memory No Continuity test Yes TRMS measurement Yes Frequency measurement Yes Capacitance measurement Yes Multiple display No Sound level measurement (dB) No Inductance measurement No Bluetooth interface No Infrared Interface (IR) No Conductivity measurement No Explosion-tested version No Resistance (diode) test Yes Data hold Yes Nominal test voltage 500 V No Nominal test voltage 1000 V No Maximum value storage Yes Low resistance measurement (4-wire Kelvin connection) No Temperature measurement RTD No Nominal test voltage 10 V No Nominal test voltage 50 V No Nominal test voltage 100 V No Nominal test voltage 250 V No Cable length measurement No Cable symmetry testing for two wire connections a-b-E No Power and energy measurement No Harmonics analysis/power quality analysis No Relative value measurement No Peak value memory No Duty cycle measurements No Rotational speed measurement No Automatic circuit breaker No Temperature measurement TC Yes Min. value storage Yes · Technical Data Sheet – Click to Download
