FP200G2C 2.5mm² White Fire Performance Soft Skin Standard Cable 2-Core
FP200G2C 2.5mm² White Fire Performance Soft Skin Standard Cable 2-Core
FP200G2C 2.5mm² White Fire Performance Soft Skin Standard Cable 2-Core - Image 2
FP200G2C 2.5mm² White Fire Performance Soft Skin Standard Cable 2-Core - Image 3

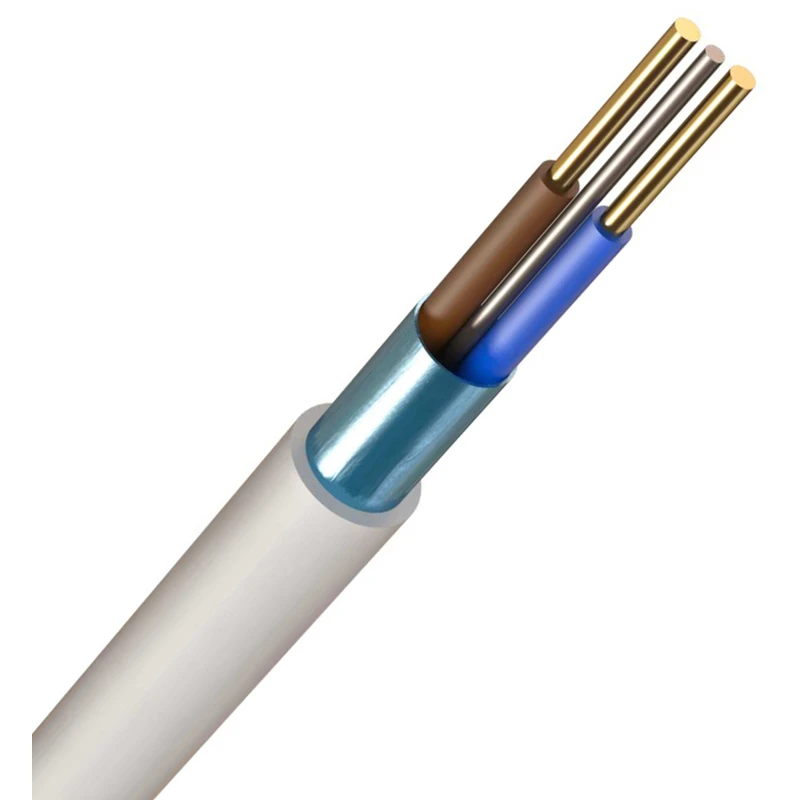

FP200G2C 2.5mm² White Fire Performance Soft Skin Standard Cable 2-Core - Image 4

FP200G2C 2.5mm² White Fire Performance Soft Skin Standard Cable 2-Core

£390.24 Incl. VAT

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Robust thermoplastic LSOH sheath · · Laminated aluminium tape bonded to sheath · · High performance damage resistant Insudite insulation · · Plain annealed solid copper conductors 1.0mm – 2.5mm · · Plain annealed stranded copper conductors for 4.0mm · · Insudite insulation · · Thermoplastic LSOH outer sheath · · Laminated aluminium tape screen

Minimum order: 100 units.

10200 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145444 Categories: , , Brand: Part Number: 2500043030

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 1 = solid Protective barrier None Core colour Several Conductor material Copper Sheath colour White Core identification Colour Number of cores 2 Max. conductor temperature 70 °C Nominal voltage U 500 V Nominal voltage U0 300 V Nominal cross sectional area of conductor 2.5 mm² Core insulation material Polyolefin Sheath material Polyolefin Conductor surface Bare Outer diameter approx. 9.5 mm Permitted cable outer temperature during assembling/handling 0 - 60 °C Screen Yes Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
