Eaton Fuse Holder 20A Black
Eaton Fuse Holder 20A Black
Eaton Fuse Holder 20A Black - Image 2

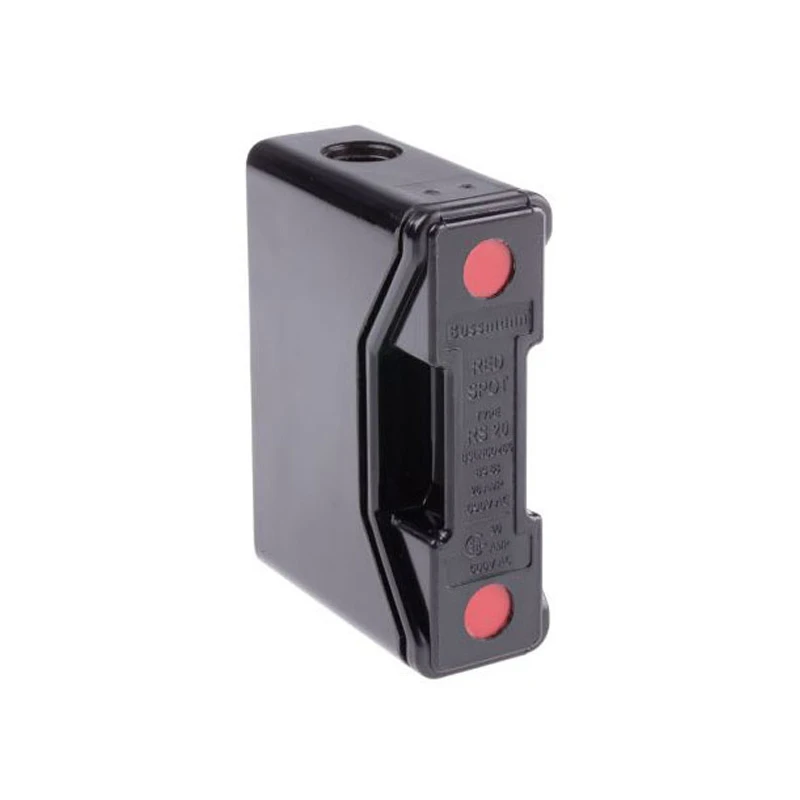

Eaton Fuse Holder 20A Black - Image 3

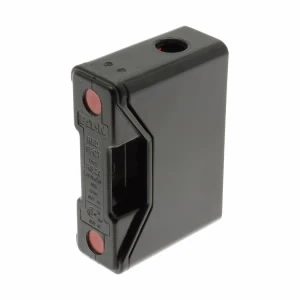

Eaton Fuse Holder 20A Black - Image 4

Eaton Fuse Holder 20A Black

£17.05 Incl. VAT

Front connected Red Spot industrial fuse holders address many applications needs and are specifically designed to fit British Standard fuse links. · · · Ratings from 20 Amps to 400 Amps, 660-690VAC · · Fully shrouded providing complete compliance with the Direct Contact Electric Shock Requirements of the IEE Wiring Regulations · · Complementary to both the RED SPOT 660 – 690VAC and BS88 · · Industrial Series Compact Fuse Links · · Full range of accessories available · · Compatible with Eaton’s Bussmann series British Standard fuse links · · Conductor size AWG (mm²): 8-10 (10-2)

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RS20H Categories: , , , , , Brand: Product Code: 2500522234

Description

Technical Specifications  Technical Specifications Low Voltage HRC fuse base/holder Connection type Screwed terminal Mounting method Screw-on Rated current 20 A Number of poles 1 Halogen free Yes Swivelling mechanism No Bus-mounting type No With extra contact No · Technical Data Sheet – Click to Download
