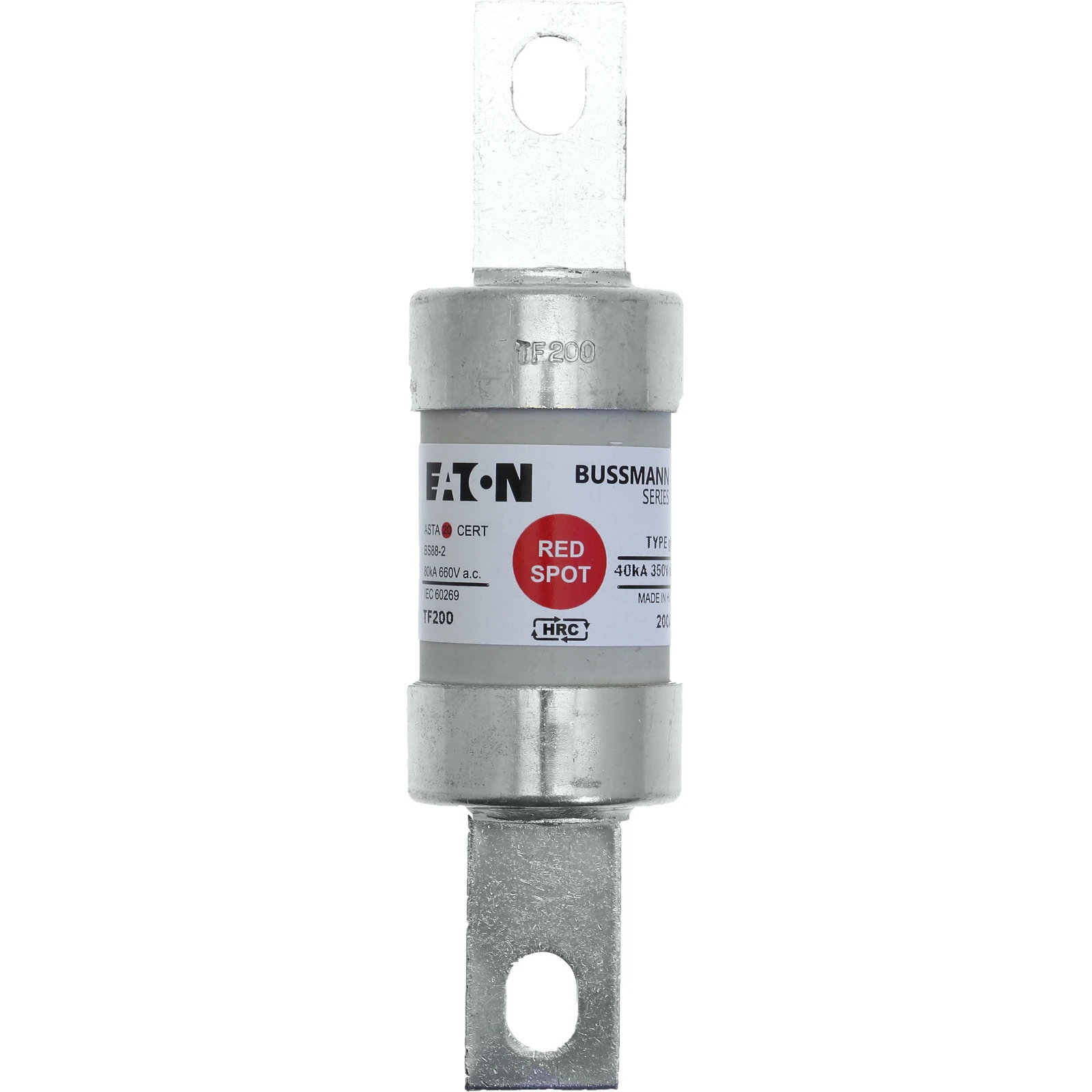

Fuse HRC Central Tags 200A
Fuse HRC Central Tags 200A

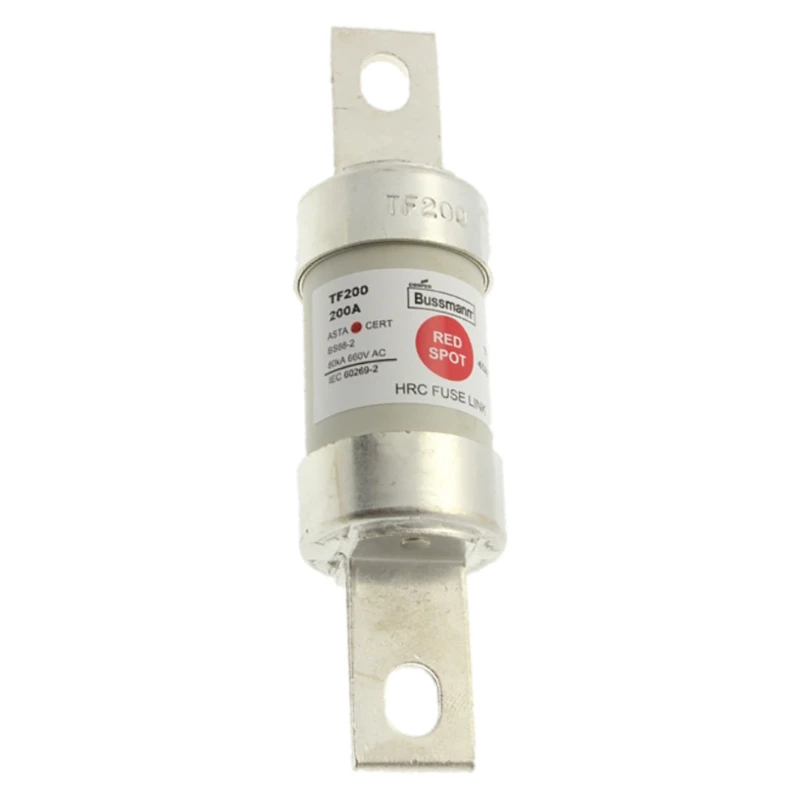

Fuse HRC Central Tags 200A - Image 2
Fuse HRC Central Tags 200A - Image 3
Fuse HRC Central Tags 200A - Image 4

Fuse HRC Central Tags 200A

£54.85 Incl. VAT

Red Spot industrial centre bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: B2 · · gG characteristics for cable protection · · Good peak and let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values well within the limits of IEC 60269 · · Compatible with Red spot fuse holder 200A RS200 · · Pre-arching: 105 · · Total at rated voltage: 430 · · 111mm fixing centre · · 660-690V AC/350V DC

3 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TF200 Categories: , , Brand: Part Number: 2500522382

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Mounting holes M8 Fuse construction type according to IEC 60269 B2 Current type AC/DC Breaking capacity 80 kA Centre-to-centre distance of connections 111 mm Rated voltage DC 350 V Rated voltage AC 660 V Rated current 200 A · Technical Data Sheet – Click to Download
