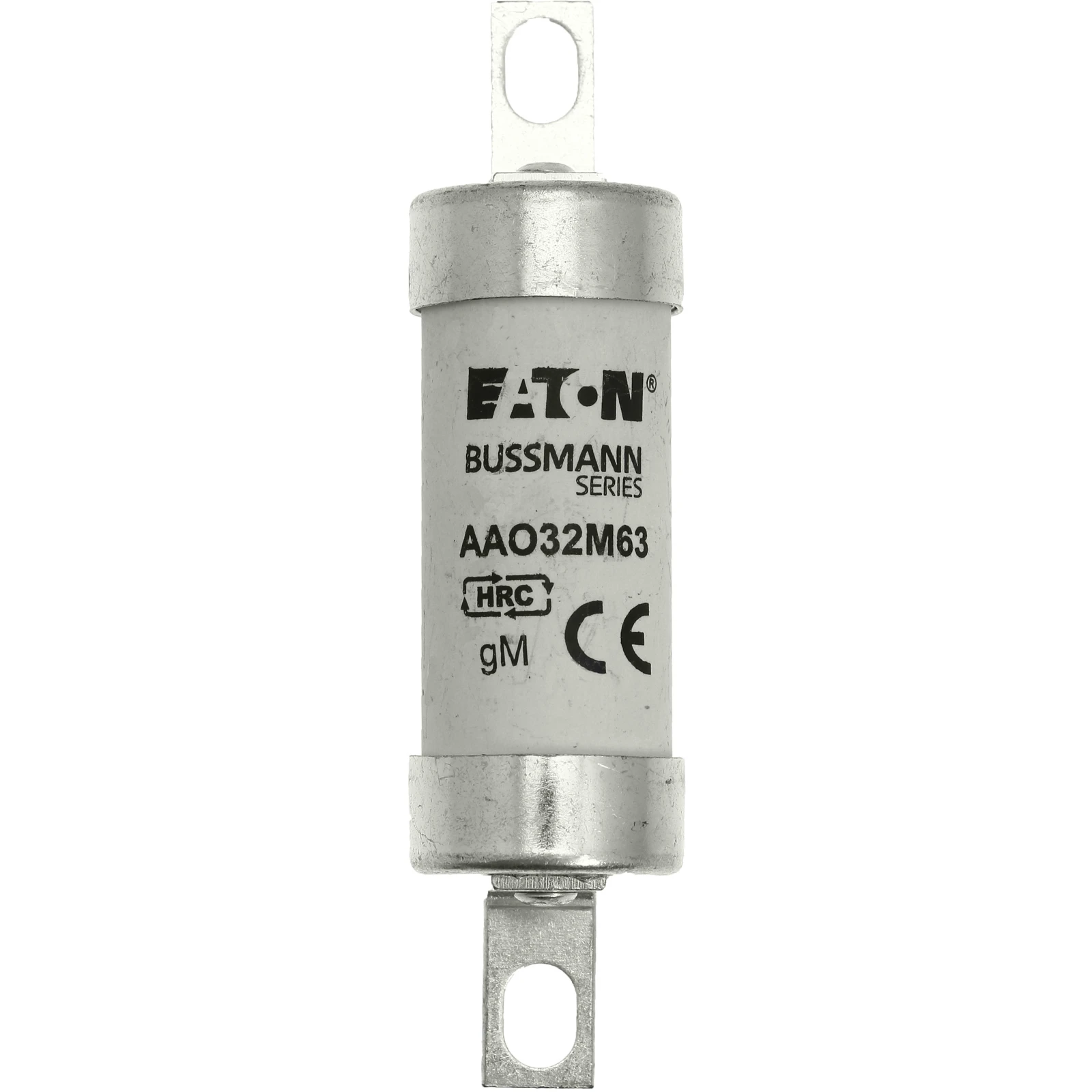

Fuse HRC Offset Bolted Tags BS88 32/63A
Fuse HRC Offset Bolted Tags BS88 32/63A
Fuse HRC Offset Bolted Tags BS88 32/63A - Image 2
Fuse HRC Offset Bolted Tags BS88 32/63A - Image 3
Fuse HRC Offset Bolted Tags BS88 32/63A - Image 4

Fuse HRC Offset Bolted Tags BS88 32/63A

£5.59 Incl. VAT

Industrial offset bolted tags fuse links are specifically designed for the protection of general motor applications. · · · BS reference: A2 · · Good peak and let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gM characteristics for motor protection applications · · Power loss values within the limits of IEC 60269 · · Compatible range of fuse holders available · · Pre-arching: 7,000 · · Total at 415V AC: 18,000 · · Total at 550V AC: 24,800 · · Watts loss: 1.4

69 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: AAO32M63 Categories: , , Brand: Part Number: 2500012763

Description

Technical Specifications  Technical Specifications HRC fuse Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Colour code None Utilization category gM (motor protection) Mounting holes M5 Fuse construction type according to IEC 60269 A2 Current type AC Rated current 63 A Breaking capacity 80 kA Centre-to-centre distance of connections 73 mm Rated voltage AC 500 V · Technical Data Sheet – Click to Download
