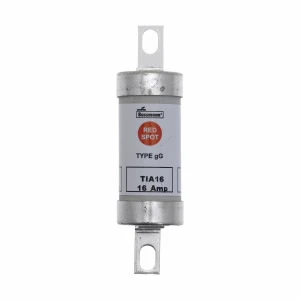

Eaton Fuse Link HRC Offset Bolted Tags 16A

SKU: TIA16Go Magpie ID: 5060062305579

Red Spot industrial offset bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: A2 · · gG characteristics for cable protection · · Good peak and let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values well within the limits of IEC 60269 · · Compatible with Camaster Compact 32A CM32FC and Red Spot fuse holder 32A RS32 · · Pre-arching: 150 · · Total at rated voltage: 1,100 · · 73mm fixing centre · · 660-690V AC/460V DC

£8.28inc VAT£6.90 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Fuse system according to IEC 60269 Fuse system E Type of fuse status indicator None Mounting holes M5 Utilization category gG (cable protection/equipment protection) Fuse construction type according to IEC 60269 A2 Current type AC/DC Centre-to-centre distance of connections 73 mm Breaking capacity 80 kA Rated voltage AC 660 V Rated voltage DC 460 V Rated current 16 A · Technical Data Sheet – Click to Download
