Fuse Link Industrial HRC Centre Bolted Tags BS88 315A
Fuse Link Industrial HRC Centre Bolted Tags BS88 315A

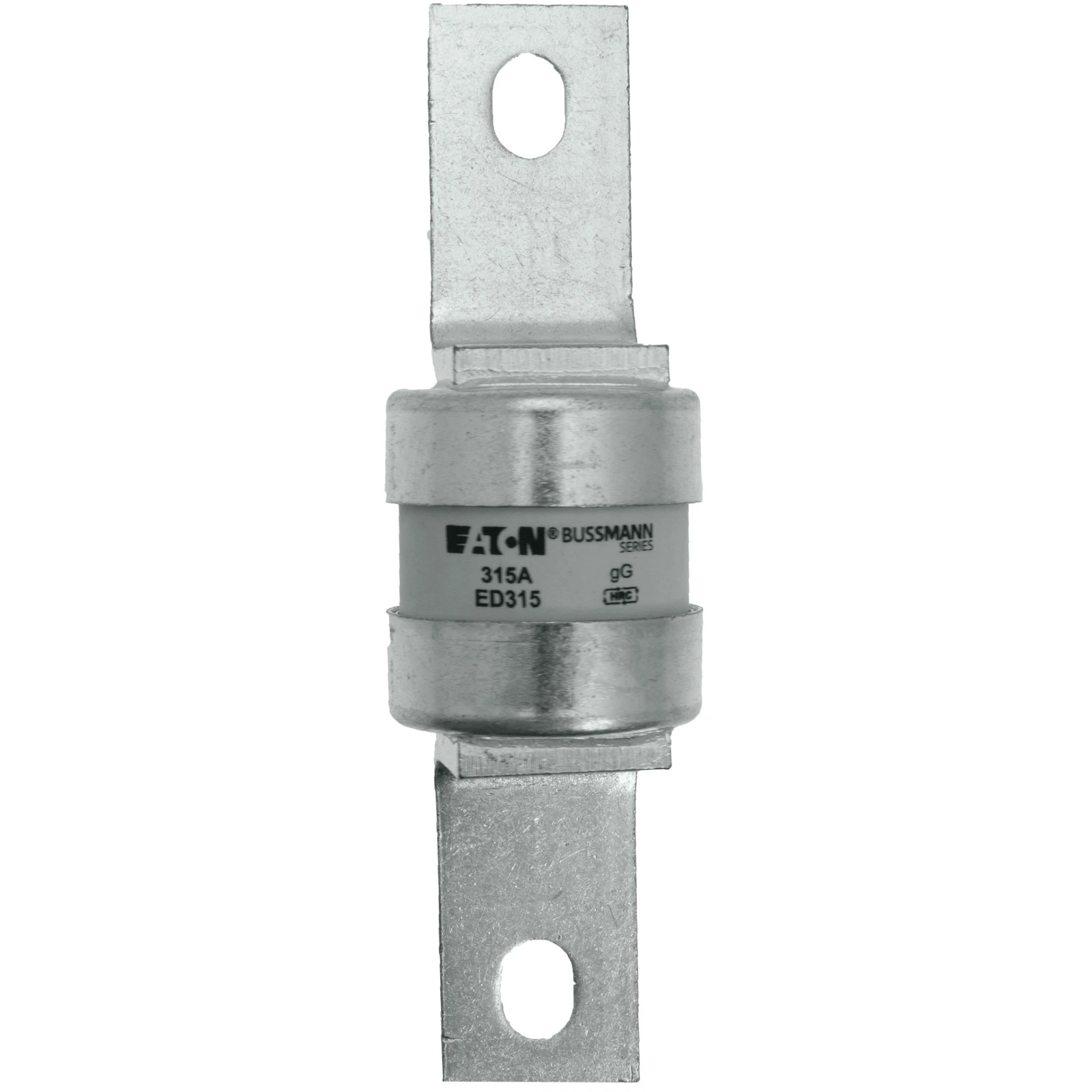

Fuse Link Industrial HRC Centre Bolted Tags BS88 315A - Image 2

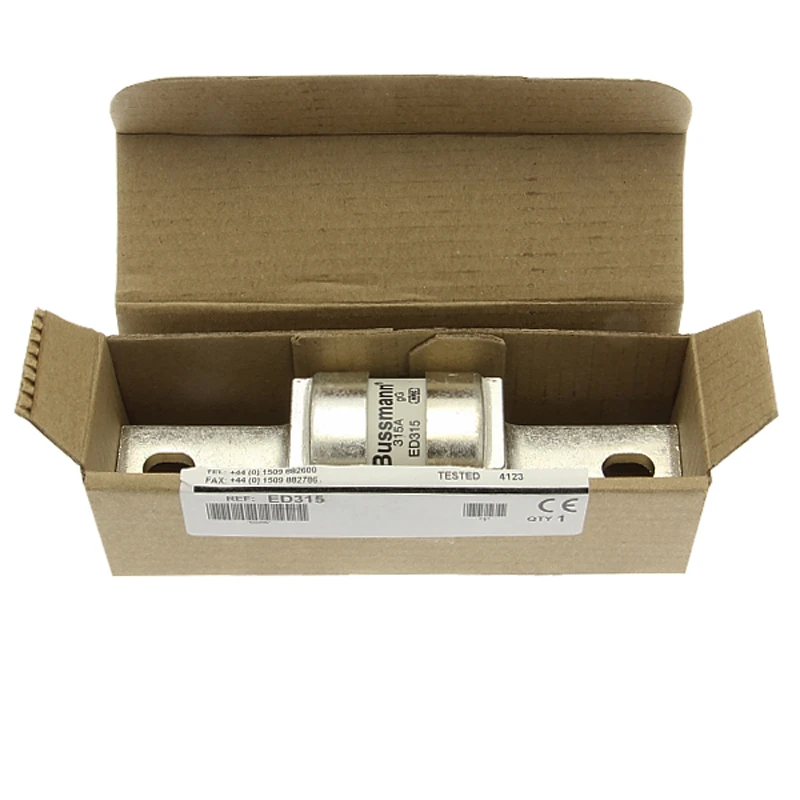

Fuse Link Industrial HRC Centre Bolted Tags BS88 315A - Image 3

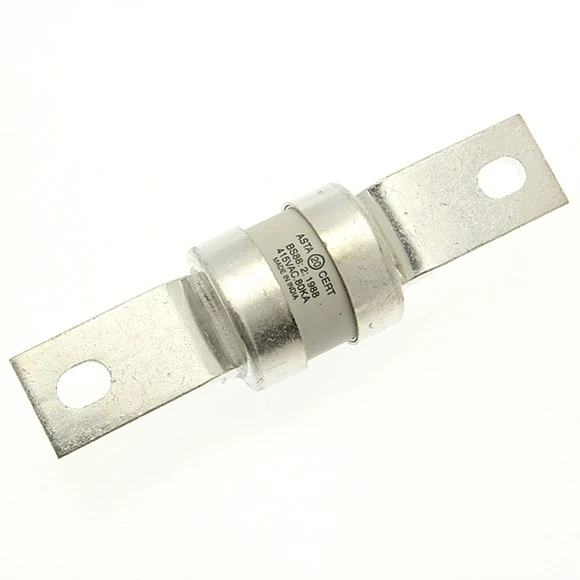

Fuse Link Industrial HRC Centre Bolted Tags BS88 315A - Image 4

Fuse Link Industrial HRC Centre Bolted Tags BS88 315A

£29.29 Incl. VAT

Industrial offset bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: B3/B4 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Pre-arching: 265 · · Total at 415V: 635 · · Watts loss: 22

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ED315 Categories: , , Brand: Part Number: 2500013211

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Mounting holes M8 Current type AC Rated current 315 A Centre-to-centre distance of connections 113 mm Rated voltage AC 415 V Breaking capacity 80 kA Power loss at rated current 22 W · Technical Data Sheet – Click to Download
