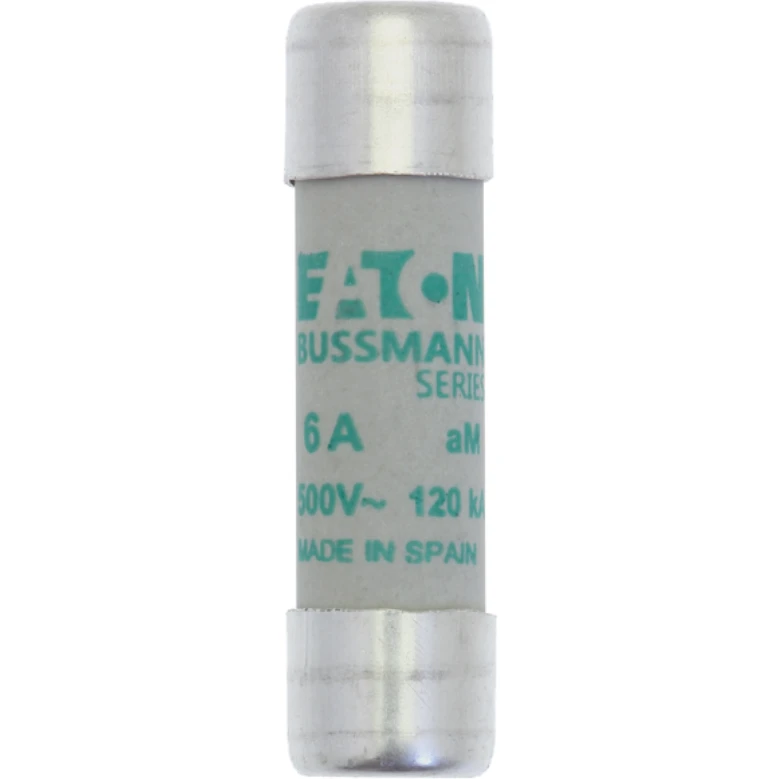

Fuse-link, low voltage, 6 A, AC 500 V, 120 kA, 10 x 38 mm, aM, IEC
Fuse-link, low voltage, 6 A, AC 500 V, 120 kA, 10 x 38 mm, aM, IEC
Fuse-link, low voltage, 6 A, AC 500 V, 120 kA, 10 x 38 mm, aM, IEC - Image 2
Fuse-link, low voltage, 6 A, AC 500 V, 120 kA, 10 x 38 mm, aM, IEC - Image 3
Fuse-link, low voltage, 6 A, AC 500 V, 120 kA, 10 x 38 mm, aM, IEC - Image 4

Fuse-link, low voltage, 6 A, AC 500 V, 120 kA, 10 x 38 mm, aM, IEC

£10.21 Incl. VAT

Fuse, fuse-link, low voltage, 6 A, AC 500 V, 38 mm, aM, IEC, cylindrical, motor protection, for industrial applications, IEC 60269-2. Purchased in multiples of 10. · · · Full range of current ratings · · Striker and non strikers versions available · · Compatible modular fuse holders · · Low temperature rise · · Tool free installation · · Min/Max Torque for main contact: 0.5/0.55Nm · · Flammability acc. to UL 94: V-0 · · Rated voltage: 500V · · Limiting temperature -40 to 125°C · · Rated impulse voltage: 6kV

70 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C10M6 Categories: , , Brand: Part Number: 2500045385

Description

Technical Specifications  Technical Specifications Cylindrical fuse Utilization category aM (switchgear protection) Model Ceramic fuse Size 10×38 mm Voltage type AC Power loss at rated current 0.32 W Breaking capacity 120 kA Rated current 6 A Rated voltage 500 V Rated operating frequency 45 – 62 Hz · Technical Data Sheet – Click to Download
