Fuse-link LV 20 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS
Fuse-link LV 20 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS
Fuse-link LV 20 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 2
Fuse-link LV 20 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 3
Fuse-link LV 20 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 4

Fuse-link LV 20 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS

£2.54 Incl. VAT

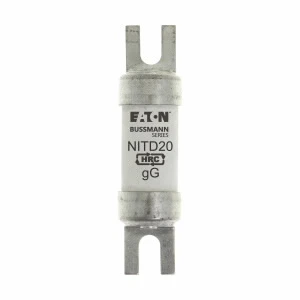

NITD20 is a Low Voltage Fuse Link, with offset bolted tags. This fuse is Q1 fusing factor for general purpose. The range of British standard Low Voltage Fuse Link size is A1, for protection of general industrial applications. · · · Breaking Capacity: 80kA 550V AC · · Current Rating: 20A · · Length: 55.2mm · · Voltage Rating: 550V AC · · Fixing Centre: 44mm

59 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NITD20 Categories: , , Brand: Part Number: 2500013945

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse construction type according to IEC 60269 A1 Fuse system according to IEC 60269 Fuse system E Mounting holes M4 Utilization category gG (cable protection/equipment protection) Current type AC Centre-to-centre distance of connections 42.5 mm Breaking capacity 80 kA Power loss at rated current 1.8 W Rated current 20 A Rated voltage AC 550 V · Technical Data Sheet – Click to Download
