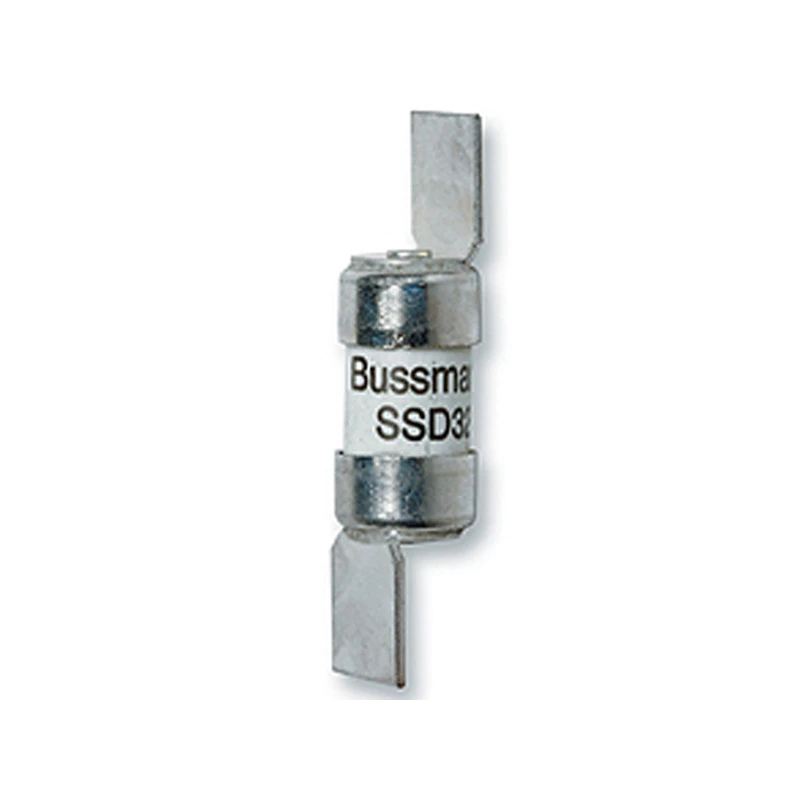

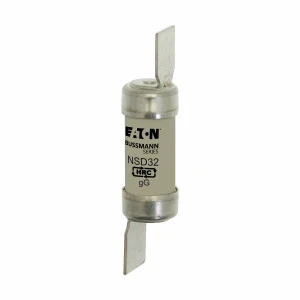

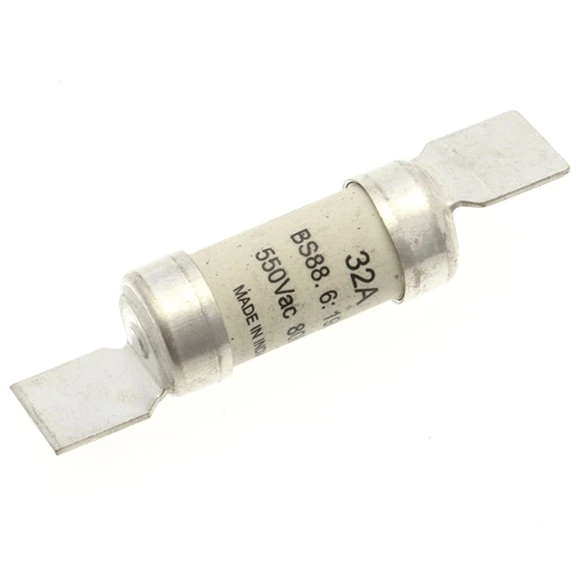

Fuse-link LV 32 A AC 550 V BS88/F1 14 x 59 mm gL/gG BS
Fuse-link LV 32 A AC 550 V BS88/F1 14 x 59 mm gL/gG BS
Fuse-link LV 32 A AC 550 V BS88/F1 14 x 59 mm gL/gG BS - Image 2
Fuse-link LV 32 A AC 550 V BS88/F1 14 x 59 mm gL/gG BS - Image 3
Fuse-link LV 32 A AC 550 V BS88/F1 14 x 59 mm gL/gG BS - Image 4

Fuse-link LV 32 A AC 550 V BS88/F1 14 x 59 mm gL/gG BS

£57.96 Incl. VAT

Industrial offset bladed tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: F1 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Compatible with Safeloc fuse holder 32A NNS and Safeclip fuse holder 32A SC32 · · Pre-arching: 710 · · Total at 415V AC: 3,000 · · Watts loss: 2.9 · · Ambient operating temperature: -25°C to 60°C · · IP20 Degree of protection

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NSD32 Categories: , , Brand: Part Number: 2500014227

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Fuse construction type according to IEC 60269 F1 Current type AC Rated current 32 A Rated voltage AC 550 V Breaking capacity 80 kA Power loss at rated current 2.9 W · Technical Data Sheet – Click to Download
