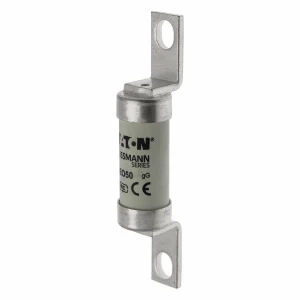

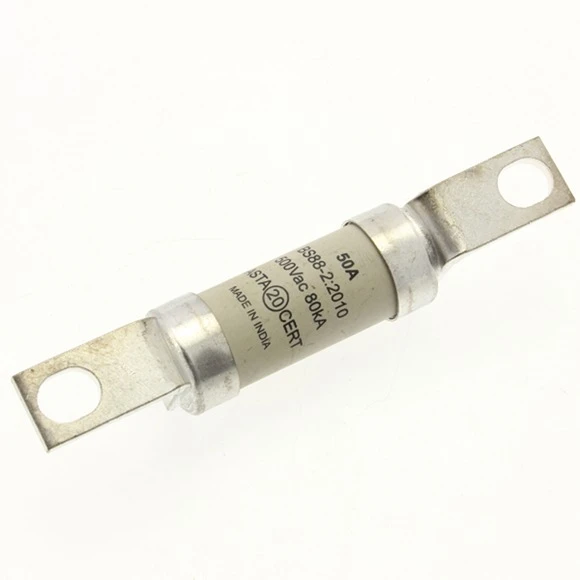

Fuse-link LV 50 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS
Fuse-link LV 50 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS
Fuse-link LV 50 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 2
Fuse-link LV 50 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 3
Fuse-link LV 50 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 4

Fuse-link LV 50 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS

£10.58 Incl. VAT

Industrial centre tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: A4 · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 100A RS100 · · Pre-arching: 3,000 · · Total at 415V: 8,350 · · Watts loss: 4.9

13 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CEO50 Categories: , , Brand: Part Number: 2500013173

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Mounting holes M8 Fuse construction type according to IEC 60269 A4 Current type AC Breaking capacity 80 kA Rated current 50 A Centre-to-centre distance of connections 94 mm Rated voltage AC 500 V Power loss at rated current 4.9 W · Technical Data Sheet – Click to Download
