Circuit Breakers & Devices

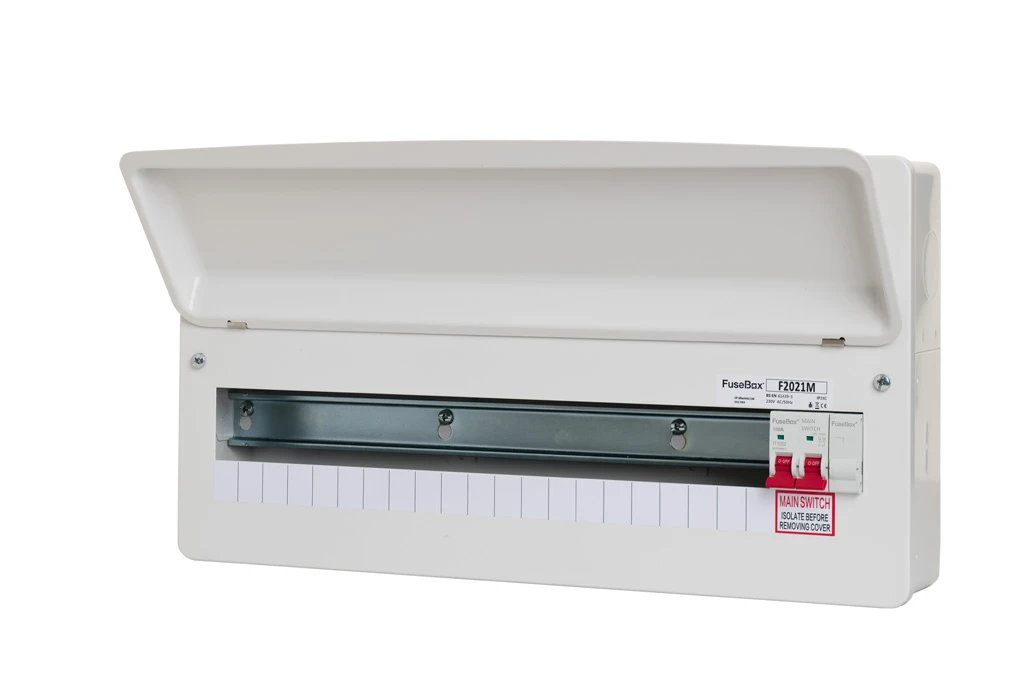

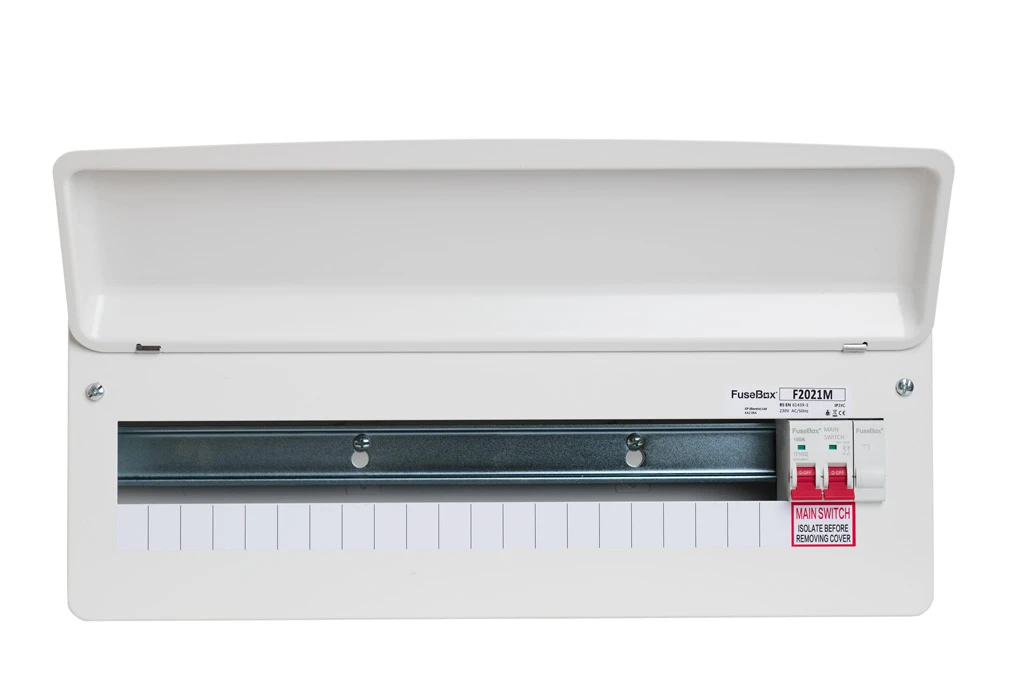

FuseBox 21 Way (100A Main Switch) Consumer Unit

Brand: FuseBoxProduct code: F2021MGo Magpie Ref: 5060062359804

The F2021M is part of the latest range of high-quality main switch consumer units from Fusebox. It features 21 usable ways and is supplied complete with a busbar, din rail, and 100A Main Switch and 2 blanks allowing for an optional Type 2 Surge Protection Device to be fitted.Additional features include captive screws on the front cover, round knockouts on all four sides along with rectangular knockouts on the rear.This consumer unit comes with an installation pack which includes a busbar, an icon label pack, and a grommet strip. · · · 21 usable ways · · Additional ways to add a Surge Protection Device · · 100A main switch incomer · · Earth and neutral terminal bars at the top

£73.44inc VAT£61.20 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Housing material Steel Width 486 mm Degree of protection (IP rating) IP2XC Colour White Height 259 mm Number of outgoing ways 21 Main switch rated current 100 A RAL number 9001 Depth 113 mm · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709857
